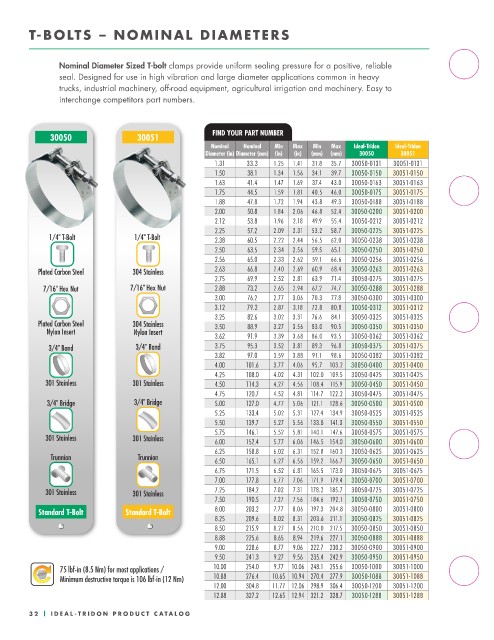

T-BOLTS – NOMINAL DIAMETERS

Nominal Diameter Sized T-bolt clamps provide uniform sealing pressure for a positive, reliable
seal. Designed for use in high vibration and large diameter applications common in heavy
trucks, industrial machinery, off-road equipment, agricultural irrigation and machinery. Easy to
interchange competitors part numbers.

30050 30051 FIND YOUR PART NUMBER
Nominal Nominal Min Max Min Max Ideal-Tridon Ideal-Tridon
Diameter (in) Diameter (mm) (in) (in) (mm) (mm) 30050 30051
1.31 33.3 1.25 1.41 31.8 35.7 30050-0131 30051-0131
1.50 38.1 1.34 1.56 34.1 39.7 30050-0150 30051-0150
1.63 41.4 1.47 1.69 37.4 43.0 30050-0163 30051-0163
1.75 44.5 1.59 1.81 40.5 46.0 30050-0175 30051-0175
1.88 47.8 1.72 1.94 43.8 49.3 30050-0188 30051-0188
2.00 50.8 1.84 2.06 46.8 52.4 30050-0200 30051-0200
2.12 53.8 1.96 2.18 49.9 55.4 30050-0212 30051-0212
2.25 57.2 2.09 2.31 53.2 58.7 30050-0225 30051-0225
1/4" T-Bolt 1/4" T-Bolt 2.38 60.5 2.22 2.44 56.5 62.0 30050-0238 30051-0238
2.50 63.5 2.34 2.56 59.5 65.1 30050-0250 30051-0250
2.56 65.0 2.33 2.62 59.1 66.6 30050-0256 30051-0256
Plated Carbon Steel 304 Stainless 2.63 66.8 2.40 2.69 60.9 68.4 30050-0263 30051-0263
2.75 69.9 2.52 2.81 63.9 71.4 30050-0275 30051-0275
7/16" Hex Nut 7/16" Hex Nut 2.88 73.2 2.65 2.94 67.2 74.7 30050-0288 30051-0288
3.00 76.2 2.77 3.06 70.3 77.8 30050-0300 30051-0300
3.12 79.2 2.87 3.18 72.8 80.8 30050-0312 30051-0312
3.25 82.6 3.02 3.31 76.6 84.1 30050-0325 30051-0325
Plated Carbon Steel 304 Stainless 3.50 88.9 3.27 3.56 83.0 90.5 30050-0350 30051-0350
Nylon Insert Nylon Insert
3.62 91.9 3.39 3.68 86.0 93.5 30050-0362 30051-0362
3/4" Band 3/4" Band 3.75 95.3 3.52 3.81 89.3 96.8 30050-0375 30051-0375
3.82 97.0 3.59 3.88 91.1 98.6 30050-0382 30051-0382
4.00 101.6 3.77 4.06 95.7 103.2 30050-0400 30051-0400
4.25 108.0 4.02 4.31 102.0 109.5 30050-0425 30051-0425
301 Stainless 301 Stainless 4.50 114.3 4.27 4.56 108.4 115.9 30050-0450 30051-0450
4.75 120.7 4.52 4.81 114.7 122.2 30050-0475 30051-0475
3/4" Bridge 3/4" Bridge 5.00 127.0 4.77 5.06 121.1 128.6 30050-0500 30051-0500
5.25 133.4 5.02 5.31 127.4 134.9 30050-0525 30051-0525
5.50 139.7 5.27 5.56 133.8 141.3 30050-0550 30051-0550
5.75 146.1 5.52 5.81 140.1 147.6 30050-0575 30051-0575
301 Stainless 301 Stainless 6.00 152.4 5.77 6.06 146.5 154.0 30050-0600 30051-0600
6.25 158.8 6.02 6.31 152.8 160.3 30050-0625 30051-0625
Trunnion Trunnion
6.50 165.1 6.27 6.56 159.2 166.7 30050-0650 30051-0650
6.75 171.5 6.52 6.81 165.5 173.0 30050-0675 30051-0675
7.00 177.8 6.77 7.06 171.9 179.4 30050-0700 30051-0700
301 Stainless 301 Stainless 7.25 184.2 7.02 7.31 178.2 185.7 30050-0725 30051-0725
7.50 190.5 7.27 7.56 184.6 192.1 30050-0750 30051-0750
Standard T-Bolt Standard T-Bolt 8.00 203.2 7.77 8.06 197.3 204.8 30050-0800 30051-0800
8.25 209.6 8.02 8.31 203.6 211.1 30050-0825 30051-0825
8.50 215.9 8.27 8.56 210.0 217.5 30050-0850 30051-0850
8.88 225.6 8.65 8.94 219.6 227.1 30050-0888 30051-0888
9.00 228.6 8.77 9.06 222.7 230.2 30050-0900 30051-0900
9.50 241.3 9.27 9.56 235.4 242.9 30050-0950 30051-0950
75 lbf-in (8.5 Nm) for most applications / 10.00 254.0 9.77 10.06 248.1 255.6 30050-1000 30051-1000
Minimum destructive torque is 106 lbf-in (12 Nm) 10.88 276.4 10.65 10.94 270.4 277.9 30050-1088 30051-1088
12.00 304.8 11.77 12.06 298.9 306.4 30050-1200 30051-1200
12.88 327.2 12.65 12.94 321.2 328.7 30050-1288 30051-1288
