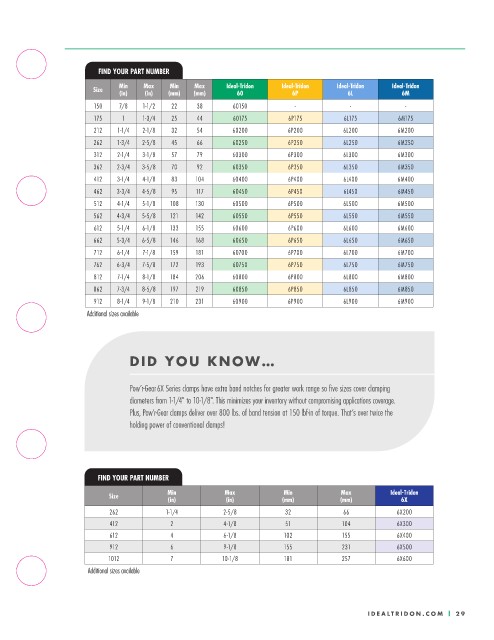

FIND YOUR PART NUMBER

Min Max Min Max Ideal-Tridon Ideal-Tridon Ideal-Tridon Ideal-Tridon
Size (in) (in) (mm) (mm) 60 6P 6L 6M
150 7/8 1-1/2 22 38 60150 - - -
175 1 1-3/4 25 44 60175 6P175 6L175 6M175
212 1-1/4 2-1/8 32 54 60200 6P200 6L200 6M200
262 1-3/4 2-5/8 45 66 60250 6P250 6L250 6M250
312 2-1/4 3-1/8 57 79 60300 6P300 6L300 6M300
362 2-3/4 3-5/8 70 92 60350 6P350 6L350 6M350
412 3-1/4 4-1/8 83 104 60400 6P400 6L400 6M400
462 3-3/4 4-5/8 95 117 60450 6P450 6L450 6M450
512 4-1/4 5-1/8 108 130 60500 6P500 6L500 6M500
562 4-3/4 5-5/8 121 142 60550 6P550 6L550 6M550
612 5-1/4 6-1/8 133 155 60600 6P600 6L600 6M600
662 5-3/4 6-5/8 146 168 60650 6P650 6L650 6M650
712 6-1/4 7-1/8 159 181 60700 6P700 6L700 6M700
762 6-3/4 7-5/8 172 193 60750 6P750 6L750 6M750
812 7-1/4 8-1/8 184 206 60800 6P800 6L800 6M800
862 7-3/4 8-5/8 197 219 60850 6P850 6L850 6M850
912 8-1/4 9-1/8 210 231 60900 6P900 6L900 6M900
Additional sizes available

DID YOU KNOW…

Pow’r-Gear6X Series clamps have extra band notches for greater work range so five sizes cover clamping

diameters from 1-1/4" to 10-1/8". This minimizes your inventory without compromising applications coverage.
Plus, Pow'r-Gear clamps deliver over 800 lbs. of band tension at 150 lbf-in of torque. That’s over twice the
holding power of conventional clamps!

FIND YOUR PART NUMBER

Min Max Min Max Ideal-Tridon
Size (in) (in) (mm) (mm) 6X
262 1-1/4 2-5/8 32 66 6X200
412 2 4-1/8 51 104 6X300
612 4 6-1/8 102 155 6X400
912 6 9-1/8 155 231 6X500
1012 7 10-1/8 181 257 6X600
Additional sizes available
