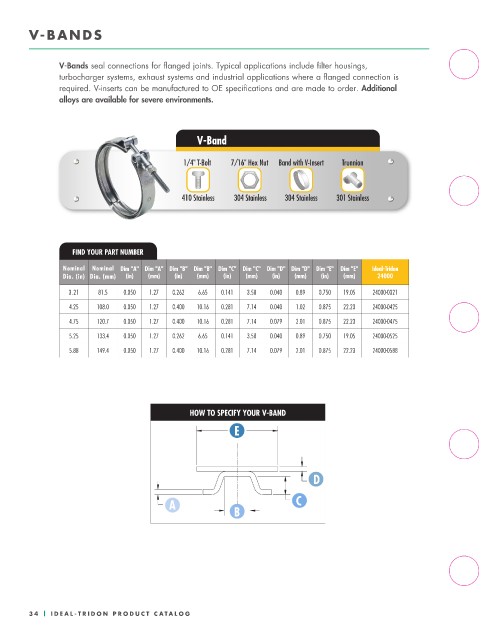

Page 34 - Ideal Catalog 2021

V-BANDS

V-Bands seal connections for flanged joints. Typical applications include filter housings,
turbocharger systems, exhaust systems and industrial applications where a flanged connection is
required. V-inserts can be manufactured to OE specifications and are made to order. Additional
alloys are available for severe environments.

V-Band

1/4" T-Bolt 7/16" Hex Nut Band with V-Insert Trunnion

410 Stainless 304 Stainless 304 Stainless 301 Stainless

FIND YOUR PART NUMBER

Nominal Nominal Dim "A" Dim "A" Dim "B" Dim "B" Dim "C" Dim "C" Dim "D" Dim "D" Dim "E" Dim "E" Ideal-Tridon
Dia. (in) Dia. (mm) (in) (mm) (in) (mm) (in) (mm) (in) (mm) (in) (mm) 24000

3.21 81.5 0.050 1.27 0.262 6.65 0.141 3.58 0.040 0.89 0.750 19.05 24000-0321
4.25 108.0 0.050 1.27 0.400 10.16 0.281 7.14 0.040 1.02 0.875 22.23 24000-0425
4.75 120.7 0.050 1.27 0.400 10.16 0.281 7.14 0.079 2.01 0.875 22.23 24000-0475
5.25 133.4 0.050 1.27 0.262 6.65 0.141 3.58 0.040 0.89 0.750 19.05 24000-0525

5.88 149.4 0.050 1.27 0.400 10.16 0.281 7.14 0.079 2.01 0.875 22.23 24000-0588

HOW TO SPECIFY YOUR V-BAND

E

D

A C
B
