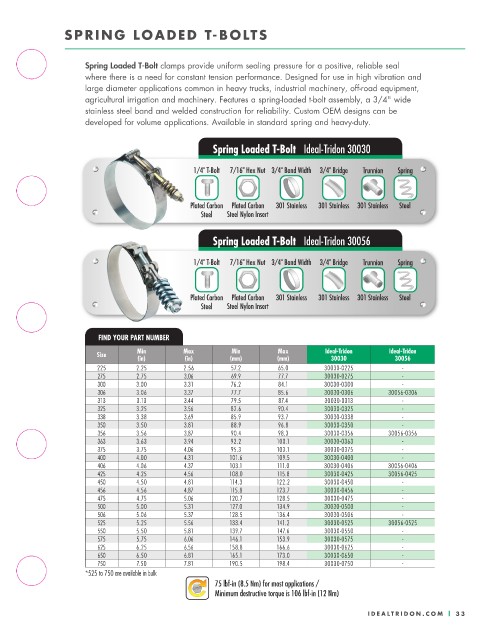

Page 33 - Ideal Catalog 2021
P. 33
SPRING LOADED T-BOLTS
Spring Loaded T-Bolt clamps provide uniform sealing pressure for a positive, reliable seal
where there is a need for constant tension performance. Designed for use in high vibration and
large diameter applications common in heavy trucks, industrial machinery, off-road equipment,
agricultural irrigation and machinery. Features a spring-loaded t-bolt assembly, a 3/4" wide
stainless steel band and welded construction for reliability. Custom OEM designs can be
developed for volume applications. Available in standard spring and heavy-duty.
Spring Loaded T-Bolt Ideal-Tridon 30030
1/4" T-Bolt 7/16" Hex Nut 3/4" Band Width 3/4" Bridge Trunnion Spring
Plated Carbon Plated Carbon 301 Stainless 301 Stainless 301 Stainless Steel
Steel Steel Nylon Insert
Spring Loaded T-Bolt Ideal-Tridon 30056
1/4" T-Bolt 7/16" Hex Nut 3/4" Band Width 3/4" Bridge Trunnion Spring
Plated Carbon Plated Carbon 301 Stainless 301 Stainless 301 Stainless Steel
Steel Steel Nylon Insert
FIND YOUR PART NUMBER
Min Max Min Max Ideal-Tridon Ideal-Tridon
Size (in) (in) (mm) (mm) 30030 30056
225 2.25 2.56 57.2 65.0 30030-0225 -
275 2.75 3.06 69.9 77.7 30030-0275 -
300 3.00 3.31 76.2 84.1 30030-0300 -
306 3.06 3.37 77.7 85.6 30030-0306 30056-0306
313 3.13 3.44 79.5 87.4 30030-0313 -
325 3.25 3.56 82.6 90.4 30030-0325 -
338 3.38 3.69 85.9 93.7 30030-0338 -
350 3.50 3.81 88.9 96.8 30030-0350 -
356 3.56 3.87 90.4 98.3 30030-0356 30056-0356
363 3.63 3.94 92.2 100.1 30030-0363 -
375 3.75 4.06 95.3 103.1 30030-0375 -
400 4.00 4.31 101.6 109.5 30030-0400 -
406 4.06 4.37 103.1 111.0 30030-0406 30056-0406
425 4.25 4.56 108.0 115.8 30030-0425 30056-0425
450 4.50 4.81 114.3 122.2 30030-0450 -
456 4.56 4.87 115.8 123.7 30030-0456 -
475 4.75 5.06 120.7 128.5 30030-0475 -
500 5.00 5.31 127.0 134.9 30030-0500 -
506 5.06 5.37 128.5 136.4 30030-0506 -
525 5.25 5.56 133.4 141.2 30030-0525 30056-0525
550 5.50 5.81 139.7 147.6 30030-0550 -
575 5.75 6.06 146.1 153.9 30030-0575 -
625 6.25 6.56 158.8 166.6 30030-0625 -
650 6.50 6.81 165.1 173.0 30030-0650 -
750 7.50 7.81 190.5 198.4 30030-0750 -
*525 to 750 are available in bulk
75 lbf-in (8.5 Nm) for most applications /
Minimum destructive torque is 106 lbf-in (12 Nm)
