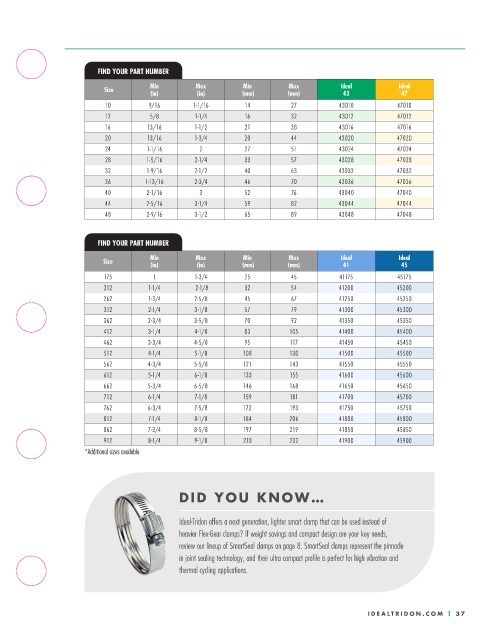

Page 37 - Ideal Catalog 2021

FIND YOUR PART NUMBER

Min Max Min Max Ideal Ideal
Size (in) (in) (mm) (mm) 43 47
10 9/16 1-1/16 14 27 43010 47010
12 5/8 1-1/4 16 32 43012 47012
16 13/16 1-1/2 21 38 43016 47016
20 13/16 1-3/4 20 44 43020 47020
24 1-1/16 2 27 51 43024 47024
28 1-5/16 2-1/4 33 57 43028 47028
32 1-9/16 2-1/2 40 63 43032 47032
36 1-13/16 2-3/4 46 70 43036 47036
40 2-1/16 3 52 76 43040 47040
44 2-5/16 3-1/4 59 82 43044 47044
48 2-9/16 3-1/2 65 89 43048 47048

FIND YOUR PART NUMBER

Size Min Max Min Max Ideal Ideal
(in) (in) (mm) (mm) 41 45
175 1 1-3/4 25 45 41175 45175
212 1-1/4 2-1/8 32 54 41200 45200
262 1-3/4 2-5/8 45 67 41250 45250
312 2-1/4 3-1/8 57 79 41300 45300
362 2-3/4 3-5/8 70 92 41350 45350
412 3-1/4 4-1/8 83 105 41400 45400
462 3-3/4 4-5/8 95 117 41450 45450
512 4-1/4 5-1/8 108 130 41500 45500
562 4-3/4 5-5/8 121 143 41550 45550
612 5-1/4 6-1/8 133 155 41600 45600
662 5-3/4 6-5/8 146 168 41650 45650
712 6-1/4 7-1/8 159 181 41700 45700
762 6-3/4 7-5/8 172 193 41750 45750
812 7-1/4 8-1/8 184 206 41800 45800
862 7-3/4 8-5/8 197 219 41850 45850
912 8-1/4 9-1/8 210 232 41900 45900
*Additional sizes available

DID YOU KNOW…

Ideal-Tridon offers a next generation, lighter smart clamp that can be used instead of
heavier Flex-Gear clamps? If weight savings and compact design are your key needs,
review our lineup of SmartSeal clamps on page 8. SmartSeal clamps represent the pinnacle
in joint sealing technology, and their ultra compact profile is perfect for high vibration and
thermal cycling applications.
