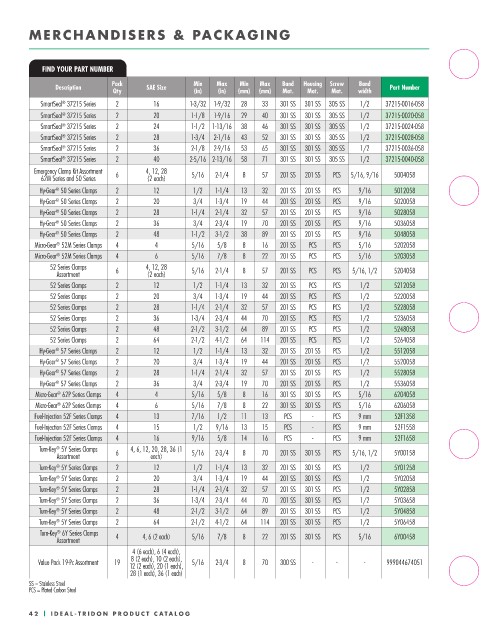

Page 42 - Ideal Catalog 2021

MERCHANDISERS & PACKAGING

FIND YOUR PART NUMBER
Pack Min Max Min Max Band Housing Screw Band
Description SAE Size Part Number
Qty (in) (in) (mm) (mm) Mat. Mat. Mat. width
SmartSeal 37215 Series 2 16 1-3/32 1-9/32 28 33 301 SS 301 SS 305 SS 1/2 37215-0016-058
®
®
SmartSeal 37215 Series 2 20 1-1/8 1-9/16 29 40 301 SS 301 SS 305 SS 1/2 37215-0020-058
SmartSeal 37215 Series 2 24 1-1/2 1-13/16 38 46 301 SS 301 SS 305 SS 1/2 37215-0024-058
®
SmartSeal 37215 Series 2 28 1-3/4 2-1/16 43 52 301 SS 301 SS 305 SS 1/2 37215-0028-058
®
SmartSeal 37215 Series 2 36 2-1/8 2-9/16 53 65 301 SS 301 SS 305 SS 1/2 37215-0036-058
®
SmartSeal 37215 Series 2 40 2-5/16 2-13/16 58 71 301 SS 301 SS 305 SS 1/2 37215-0040-058
®
Emergency Clamp Kit Assortment 4, 12, 28
62M Series and 50 Series 6 (2 each) 5/16 2-1/4 8 57 201 SS 201 SS PCS 5/16, 9/16 5004058
Hy-Gear 50 Series Clamps 2 12 1/2 1-1/4 13 32 201 SS 201 SS PCS 9/16 5012058
®
Hy-Gear 50 Series Clamps 2 20 3/4 1-3/4 19 44 201 SS 201 SS PCS 9/16 5020058
®
Hy-Gear 50 Series Clamps 2 28 1-1/4 2-1/4 32 57 201 SS 201 SS PCS 9/16 5028058
®
Hy-Gear 50 Series Clamps 2 36 3/4 2-3/4 19 70 201 SS 201 SS PCS 9/16 5036058
®
Hy-Gear 50 Series Clamps 2 48 1-1/2 3-1/2 38 89 201 SS 201 SS PCS 9/16 5048058
®
Micro-Gear 52M Series Clamps 4 4 5/16 5/8 8 16 201 SS PCS PCS 5/16 5202058
®
Micro-Gear 52M Series Clamps 4 6 5/16 7/8 8 22 201 SS PCS PCS 5/16 5203058
®
52 Series Clamps 4, 12, 28
Assortment 6 (2 each) 5/16 2-1/4 8 57 201 SS PCS PCS 5/16, 1/2 5204058
52 Series Clamps 2 12 1/2 1-1/4 13 32 201 SS PCS PCS 1/2 5212058
52 Series Clamps 2 20 3/4 1-3/4 19 44 201 SS PCS PCS 1/2 5220058
52 Series Clamps 2 28 1-1/4 2-1/4 32 57 201 SS PCS PCS 1/2 5228058
52 Series Clamps 2 36 1-3/4 2-3/4 44 70 201 SS PCS PCS 1/2 5236058
52 Series Clamps 2 48 2-1/2 3-1/2 64 89 201 SS PCS PCS 1/2 5248058
52 Series Clamps 2 64 2-1/2 4-1/2 64 114 201 SS PCS PCS 1/2 5264058
Hy-Gear 57 Series Clamps 2 12 1/2 1-1/4 13 32 201 SS 201 SS PCS 1/2 5512058
®
Hy-Gear 57 Series Clamps 2 20 3/4 1-3/4 19 44 201 SS 201 SS PCS 1/2 5520058
®
Hy-Gear 57 Series Clamps 2 28 1-1/4 2-1/4 32 57 201 SS 201 SS PCS 1/2 5528058
®
Hy-Gear 57 Series Clamps 2 36 3/4 2-3/4 19 70 201 SS 201 SS PCS 1/2 5536058
®
Micro-Gear 62P Series Clamps 4 4 5/16 5/8 8 16 301 SS 301 SS PCS 5/16 6204058
®
Micro-Gear 62P Series Clamps 4 6 5/16 7/8 8 22 301 SS 301 SS PCS 5/16 6206058
®
Fuel-Injection 52F Series Clamps 4 13 7/16 1/2 11 13 PCS - PCS 9 mm 52F1358
Fuel-Injection 52F Series Clamps 4 15 1/2 9/16 13 15 PCS - PCS 9 mm 52F1558
Fuel-Injection 52F Series Clamps 4 16 9/16 5/8 14 16 PCS - PCS 9 mm 52F1658
Turn-Key 5Y Series Clamps 4, 6, 12, 20, 28, 36 (1
®
Assortment 6 each) 5/16 2-3/4 8 70 201 SS 301 SS PCS 5/16, 1/2 5Y00158
Turn-Key 5Y Series Clamps 2 12 1/2 1-1/4 13 32 201 SS 301 SS PCS 1/2 5Y01258
®
Turn-Key 5Y Series Clamps 2 20 3/4 1-3/4 19 44 201 SS 301 SS PCS 1/2 5Y02058
®
Turn-Key 5Y Series Clamps 2 28 1-1/4 2-1/4 32 57 201 SS 301 SS PCS 1/2 5Y02858
®
®
Turn-Key 5Y Series Clamps 2 36 1-3/4 2-3/4 44 70 201 SS 301 SS PCS 1/2 5Y03658
Turn-Key 5Y Series Clamps 2 48 2-1/2 3-1/2 64 89 201 SS 301 SS PCS 1/2 5Y04858
®
®
Turn-Key 5Y Series Clamps 2 64 2-1/2 4-1/2 64 114 201 SS 301 SS PCS 1/2 5Y06458
Turn-Key 6Y Series Clamps
®
Assortment 4 4, 6 (2 each) 5/16 7/8 8 22 201 SS 301 SS PCS 5/16 6Y00458
4 (6 each), 6 (4 each),
8 (2 each), 10 (2 each),
Value Pack 19-Pc Assortment 19 5/16 2-3/4 8 70 300 SS - - - 999044674051
12 (2 each), 20 (1 each),
28 (1 each), 36 (1 each)
SS = Stainless Steel
PCS = Plated Carbon Steel
