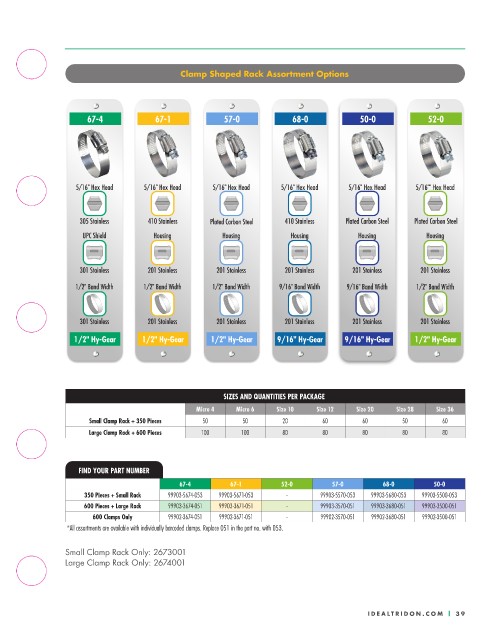

Clamp Shaped Rack Assortment Options
67-4 67-1 57-0 68-0 50-0 52-0
5/16" Hex Head 5/16" Hex Head 5/16" Hex Head 5/16" Hex Head 5/16" Hex Head 5/16"" Hex Head
305 Stainless 410 Stainless Plated Carbon Steel 410 Stainless Plated Carbon Steel Plated Carbon Steel
UPC Shield Housing Housing Housing Housing Housing
301 Stainless 201 Stainless 201 Stainless 201 Stainless 201 Stainless 201 Stainless
1/2" Band Width 1/2" Band Width 1/2" Band Width 9/16" Band Width 9/16" Band Width 1/2" Band Width
301 Stainless 201 Stainless 201 Stainless 201 Stainless 201 Stainless 201 Stainless
1/2" Hy-Gear 1/2" Hy-Gear 1/2" Hy-Gear 9/16" Hy-Gear 9/16" Hy-Gear 1/2" Hy-Gear
SIZES AND QUANTITIES PER PACKAGE
Micro 4 Micro 6 Size 10 Size 12 Size 20 Size 28 Size 36
Small Clamp Rack + 350 Pieces 50 50 20 60 60 50 60
Large Clamp Rack + 600 Pieces 100 100 80 80 80 80 80
FIND YOUR PART NUMBER
67-4 67-1 52-0 57-0 68-0 50-0
350 Pieces + Small Rack 99903-5674-053 99903-5671-053 - 99903-5570-053 99903-5680-053 99903-5500-053
600 Pieces + Large Rack 99903-3674-051 99903-3671-051 - 99903-3570-051 99903-3680-051 99903-3500-051
600 Clamps Only 99902-3674-051 99902-3671-051 - 99902-3570-051 99902-3680-051 99902-3500-051
*All assortments are available with individually barcoded clamps. Replace 051 in the part no. with 053.
Small Clamp Rack Only: 2673001
Large Clamp Rack Only: 2674001
