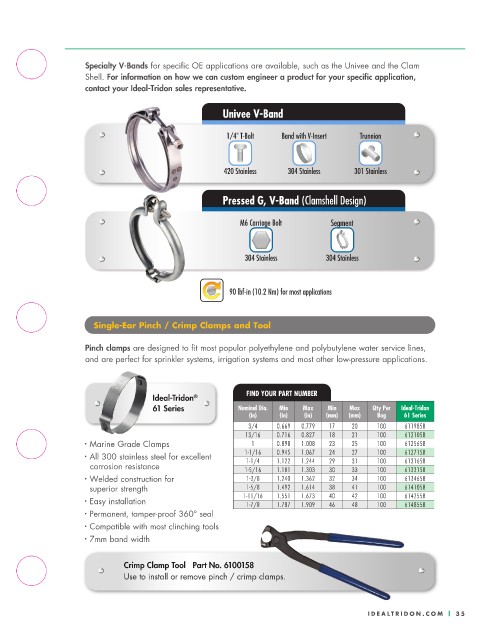

Page 35 - Ideal Catalog 2021

Specialty V-Bands for specific OE applications are available, such as the Univee and the Clam
Shell. For information on how we can custom engineer a product for your specific application,
contact your Ideal-Tridon sales representative.

Univee V-Band

1/4" T-Bolt Band with V-Insert Trunnion

420 Stainless 304 Stainless 301 Stainless

Pressed G, V-Band (Clamshell Design)

M6 Carriage Bolt Segment

304 Stainless 304 Stainless

90 lbf-in (10.2 Nm) for most applications

Single-Ear Pinch / Crimp Clamps and Tool

Pinch clamps are designed to fit most popular polyethylene and polybutylene water service lines,
and are perfect for sprinkler systems, irrigation systems and most other low-pressure applications.

FIND YOUR PART NUMBER
Ideal-Tridon
®
61 Series Nominal Dia. Min Max Min Max Qty Per Ideal-Tridon
(in) (in) (in) (mm) (mm) Bag 61 Series
3/4 0.669 0.779 17 20 100 611985B
13/16 0.716 0.827 18 21 100 612105B
• Marine Grade Clamps 1 0.898 1.008 23 25 100 612565B
• All 300 stainless steel for excellent 1-1/16 0.945 1.067 24 27 100 612715B
1-1/4
1.122
1.244
31
100
613165B
29
corrosion resistance 1-5/16 1.181 1.303 30 33 100 613315B
• Welded construction for 1-3/8 1.240 1.362 32 34 100 613465B
superior strength 1-5/8 1.492 1.614 38 41 100 614105B
1-11/16 1.551 1.673 40 42 100 614255B
• Easy installation 1-7/8 1.787 1.909 46 48 100 614855B
• Permanent, tamper-proof 360° seal
• Compatible with most clinching tools
• 7mm band width
Crimp Clamp Tool Part No. 6100158
Use to install or remove pinch / crimp clamps.
