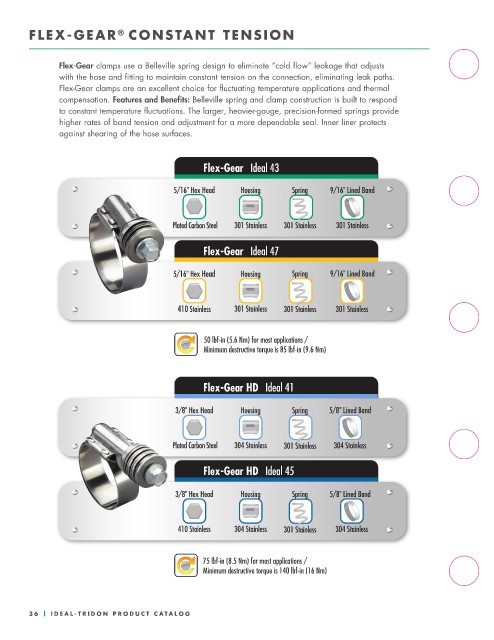

FLEX-GEAR CONSTANT TENSION
®
Flex-Gear clamps use a Belleville spring design to eliminate “cold flow” leakage that adjusts
with the hose and fitting to maintain constant tension on the connection, eliminating leak paths.
Flex-Gear clamps are an excellent choice for fluctuating temperature applications and thermal
compensation. Features and Benefits: Belleville spring and clamp construction is built to respond
to constant temperature fluctuations. The larger, heavier-gauge, precision-formed springs provide
higher rates of band tension and adjustment for a more dependable seal. Inner liner protects
against shearing of the hose surfaces.
Flex-Gear Ideal 43
5/16" Hex Head Housing Spring 9/16" Lined Band
Plated Carbon Steel 301 Stainless 301 Stainless 301 Stainless
Flex-Gear Ideal 47
5/16" Hex Head Housing Spring 9/16" Lined Band
410 Stainless 301 Stainless 301 Stainless 301 Stainless
50 lbf-in (5.6 Nm) for most applications /
Minimum destructive torque is 85 lbf-in (9.6 Nm)
Flex-Gear HD Ideal 41
3/8" Hex Head Housing Spring 5/8" Lined Band
Plated Carbon Steel 304 Stainless 301 Stainless 304 Stainless
Flex-Gear HD Ideal 45
3/8" Hex Head Housing Spring 5/8" Lined Band
410 Stainless 304 Stainless 301 Stainless 304 Stainless
75 lbf-in (8.5 Nm) for most applications /
Minimum destructive torque is 140 lbf-in (16 Nm)
