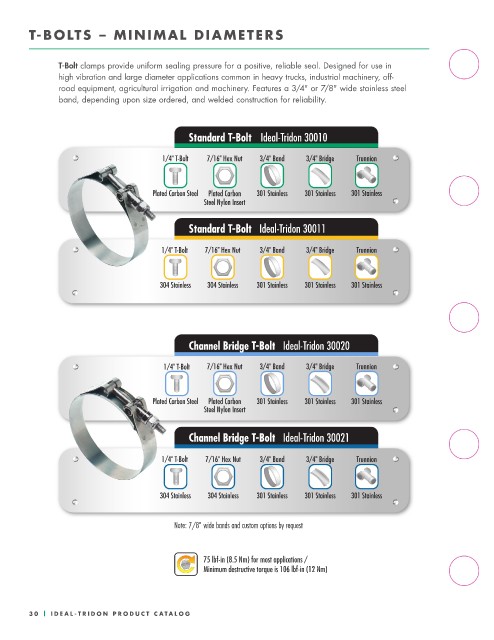

T-BOLTS – MINIMAL DIAMETERS

T-Bolt clamps provide uniform sealing pressure for a positive, reliable seal. Designed for use in
high vibration and large diameter applications common in heavy trucks, industrial machinery, off-
road equipment, agricultural irrigation and machinery. Features a 3/4" or 7/8" wide stainless steel
band, depending upon size ordered, and welded construction for reliability.

Standard T-Bolt Ideal-Tridon 30010

1/4" T-Bolt 7/16" Hex Nut 3/4" Band 3/4" Bridge Trunnion

Plated Carbon Steel Plated Carbon 301 Stainless 301 Stainless 301 Stainless
Steel Nylon Insert

Standard T-Bolt Ideal-Tridon 30011

1/4" T-Bolt 7/16" Hex Nut 3/4" Band 3/4" Bridge Trunnion

304 Stainless 304 Stainless 301 Stainless 301 Stainless 301 Stainless

Channel Bridge T-Bolt Ideal-Tridon 30020

1/4" T-Bolt 7/16" Hex Nut 3/4" Band 3/4" Bridge Trunnion

Plated Carbon Steel Plated Carbon 301 Stainless 301 Stainless 301 Stainless
Steel Nylon Insert

Channel Bridge T-Bolt Ideal-Tridon 30021

1/4" T-Bolt 7/16" Hex Nut 3/4" Band 3/4" Bridge Trunnion

304 Stainless 304 Stainless 301 Stainless 301 Stainless 301 Stainless

Note: 7/8" wide bands and custom options by request

75 lbf-in (8.5 Nm) for most applications /
Minimum destructive torque is 106 lbf-in (12 Nm)
