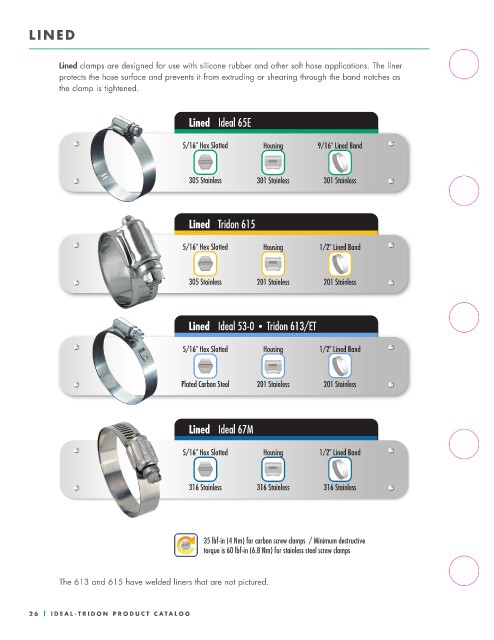

LINED

Lined clamps are designed for use with silicone rubber and other soft hose applications. The liner
protects the hose surface and prevents it from extruding or shearing through the band notches as
the clamp is tightened.

Lined Ideal 65E

5/16" Hex Slotted Housing 9/16" Lined Band

305 Stainless 301 Stainless 301 Stainless

Lined Tridon 615

5/16" Hex Slotted Housing 1/2" Lined Band

305 Stainless 201 Stainless 201 Stainless

Lined Ideal 53-0 • Tridon 613/ET

5/16" Hex Slotted Housing 1/2" Lined Band

Plated Carbon Steel 201 Stainless 201 Stainless

Lined Ideal 67M

5/16" Hex Slotted Housing 1/2" Lined Band

316 Stainless 316 Stainless 316 Stainless

35 lbf-in (4 Nm) for carbon screw clamps / Minimum destructive
torque is 60 lbf-in (6.8 Nm) for stainless steel screw clamps

The 613 and 615 have welded liners that are not pictured.
