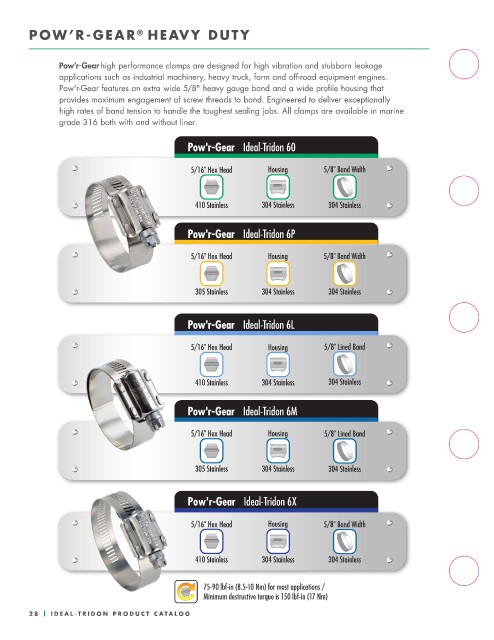

POW’R-GEAR HEAVY DUTY
®
Pow’r-Gear high performance clamps are designed for high vibration and stubborn leakage
applications such as industrial machinery, heavy truck, farm and off-road equipment engines.
Pow'r-Gear features an extra wide 5/8" heavy gauge band and a wide profile housing that
provides maximum engagement of screw threads to band. Engineered to deliver exceptionally
high rates of band tension to handle the toughest sealing jobs. All clamps are available in marine
grade 316 both with and without liner.
Pow'r-Gear Ideal-Tridon 60
5/16" Hex Head Housing 5/8" Band Width
410 Stainless 304 Stainless 304 Stainless
Pow'r-Gear Ideal-Tridon 6P
5/16" Hex Head Housing 5/8" Band Width
305 Stainless 304 Stainless 304 Stainless
Pow'r-Gear Ideal-Tridon 6L
5/16" Hex Head Housing 5/8" Lined Band
410 Stainless 304 Stainless 304 Stainless
Pow'r-Gear Ideal-Tridon 6M
5/16" Hex Head Housing 5/8" Lined Band
305 Stainless 304 Stainless 304 Stainless
Pow'r-Gear Ideal-Tridon 6X
5/16" Hex Head Housing 5/8" Band Width
410 Stainless 304 Stainless 304 Stainless
75-90 lbf-in (8.5-10 Nm) for most applications /
Minimum destructive torque is 150 lbf-in (17 Nm)
