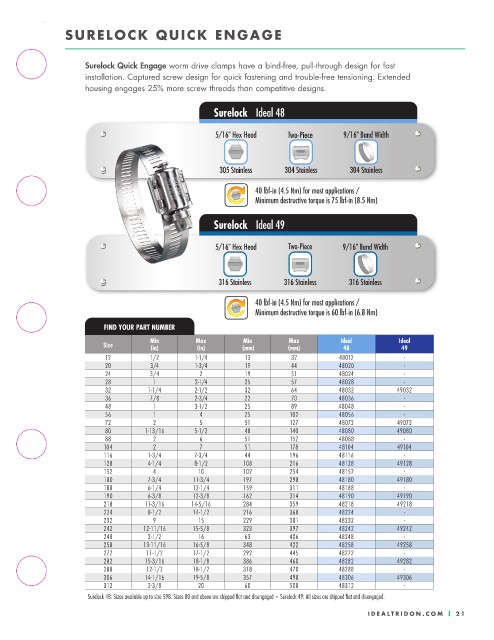

SURELOCK QUICK ENGAGE
Surelock Quick Engage worm drive clamps have a bind-free, pull-through design for fast
installation. Captured screw design for quick fastening and trouble-free tensioning. Extended
housing engages 25% more screw threads than competitive designs.
Surelock Ideal 48
5/16" Hex Head Two-Piece 9/16" Band Width
305 Stainless 304 Stainless 304 Stainless
40 lbf-in (4.5 Nm) for most applications /
Minimum destructive torque is 75 lbf-in (8.5 Nm)
Surelock Ideal 49
5/16" Hex Head Two-Piece 9/16" Band Width
316 Stainless 316 Stainless 316 Stainless
40 lbf-in (4.5 Nm) for most applications /
Minimum destructive torque is 60 lbf-in (6.8 Nm)
FIND YOUR PART NUMBER
Min Max Min Max Ideal Ideal
Size (in) (in) (mm) (mm) 48 49
12 1/2 1-1/4 13 32 48012 -
20 3/4 1-3/4 19 44 48020 -
24 3/4 2 19 51 48024 -
28 1 2-1/4 25 57 48028 -
32 1-1/4 2-1/2 32 64 48032 49032
36 7/8 2-3/4 22 70 48036 -
48 1 3-1/2 25 89 48048 -
56 1 4 25 102 48056 -
72 2 5 51 127 48072 49073
80 1-13/16 5-1/2 48 140 48080 49080
88 2 6 51 152 48088 -
104 2 7 51 178 48104 49104
116 1-3/4 7-3/4 44 196 48116 -
128 4-1/4 8-1/2 108 216 48128 49128
152 4 10 102 254 48152 -
180 7-3/4 11-3/4 197 298 48180 49180
188 6-1/4 12-1/4 159 311 48188 -
190 6-3/8 12-3/8 162 314 48190 49190
218 11-3/16 14-5/16 284 359 48218 49218
224 8-1/2 14-1/2 216 368 48224 -
232 9 15 229 381 48232 -
242 12-11/16 15-5/8 323 397 48242 49242
248 2-1/2 16 63 406 48248 -
258 13-11/16 16-5/8 348 422 48258 49258
272 11-1/2 17-1/2 292 445 48272 -
282 15-3/16 18-1/8 386 460 48282 49282
288 12-1/2 18-1/2 318 470 48288 -
306 14-1/16 19-5/8 357 498 48306 49306
312 2-3/8 20 60 508 48312 -
Surelock 48: Sizes available up to size 598. Sizes 80 and above are shipped flat and disengaged • Surelock 49: All sizes are shipped flat and disengaged.
