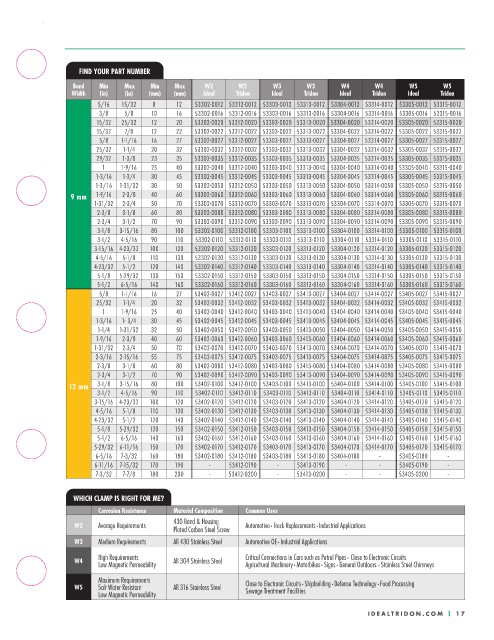

FIND YOUR PART NUMBER

Band Min Max Min Max W2 W2 W3 W3 W4 W4 W5 W5
Width (in) (in) (mm) (mm) Ideal Tridon Ideal Tridon Ideal Tridon Ideal Tridon
5/16 15/32 8 12 53302-0012 53312-0012 53303-0012 53313-0012 53304-0012 53314-0012 53305-0012 53315-0012
3/8 5/8 10 16 53302-0016 53312-0016 53303-0016 53313-0016 53304-0016 53314-0016 53305-0016 53315-0016
15/32 25/32 12 20 53302-0020 53312-0020 53303-0020 53313-0020 53304-0020 53314-0020 53305-0020 53315-0020
15/32 7/8 12 22 53302-0022 53312-0022 53303-0022 53313-0022 53304-0022 53314-0022 53305-0022 53315-0022
5/8 1-1/16 16 27 53302-0027 53312-0027 53303-0027 53313-0027 53304-0027 53314-0027 53305-0027 53315-0027
25/32 1-1/4 20 32 53302-0032 53312-0032 53303-0032 53313-0032 53304-0032 53314-0032 53305-0032 53315-0032
29/32 1-3/8 23 35 53302-0035 53312-0035 53303-0035 53313-0035 53304-0035 53314-0035 53305-0035 53315-0035
1 1-9/16 25 40 53302-0040 53312-0040 53303-0040 53313-0040 53304-0040 53314-0040 53305-0040 53315-0040
1-3/16 1-3/4 30 45 53302-0045 53312-0045 53303-0045 53313-0045 53304-0045 53314-0045 53305-0045 53315-0045
1-3/16 1-31/32 30 50 53302-0050 53312-0050 53303-0050 53313-0050 53304-0050 53314-0050 53305-0050 53315-0050
9 mm 1-9/16 2-3/8 40 60 53302-0060 53312-0060 53303-0060 53313-0060 53304-0060 53314-0060 53305-0060 53315-0060
1-31/32 2-3/4 50 70 53302-0070 53312-0070 53303-0070 53313-0070 53304-0070 53314-0070 53305-0070 53315-0070
2-3/8 3-1/8 60 80 53302-0080 53312-0080 53303-0080 53313-0080 53304-0080 53314-0080 53305-0080 53315-0080
2-3/4 3-1/2 70 90 53302-0090 53312-0090 53303-0090 53313-0090 53304-0090 53314-0090 53305-0090 53315-0090
3-1/8 3-15/16 80 100 53302-0100 53312-0100 53303-0100 53313-0100 53304-0100 53314-0100 53305-0100 53315-0100
3-1/2 4-5/16 90 110 53302-0110 53312-0110 53303-0110 53313-0110 53304-0110 53314-0110 53305-0110 53315-0110
3-15/16 4-23/32 100 120 53302-0120 53312-0120 53303-0120 53313-0120 53304-0120 53314-0120 53305-0120 53315-0120
4-5/16 5-1/8 110 130 53302-0130 53312-0130 53303-0130 53313-0130 53304-0130 53314-0130 53305-0130 53315-0130
4-23/32 5-1/2 120 140 53302-0140 53312-0140 53303-0140 53313-0140 53304-0140 53314-0140 53305-0140 53315-0140
5-1/8 5-29/32 130 150 53302-0150 53312-0150 53303-0150 53313-0150 53304-0150 53314-0150 53305-0150 53315-0150
5-1/2 6-5/16 140 160 53302-0160 53312-0160 53303-0160 53313-0160 53304-0160 53314-0160 53305-0160 53315-0160
5/8 1-1/16 16 27 53402-0027 53412-0027 53403-0027 53413-0027 53404-0027 53414-0027 53405-0027 53415-0027
25/32 1-1/4 20 32 53402-0032 53412-0032 53403-0032 53413-0032 53404-0032 53414-0032 53405-0032 53415-0032
1 1-9/16 25 40 53402-0040 53412-0040 53403-0040 53413-0040 53404-0040 53414-0040 53405-0040 53415-0040
1-3/16 1- 3/4 30 45 53402-0045 53412-0045 53403-0045 53413-0045 53404-0045 53414-0045 53405-0045 53415-0045
1-1/4 1-31/32 32 50 53402-0050 53412-0050 53403-0050 53413-0050 53404-0050 53414-0050 53405-0050 53415-0050
1-9/16 2-3/8 40 60 53402-0060 53412-0060 53403-0060 53413-0060 53404-0060 53414-0060 53405-0060 53415-0060
1-31/32 2-3/4 50 70 53402-0070 53412-0070 53403-0070 53413-0070 53404-0070 53414-0070 53405-0070 53415-0070
2-3/16 2-15/16 55 75 53402-0075 53412-0075 53403-0075 53413-0075 53404-0075 53414-0075 53405-0075 53415-0075
2-3/8 3-1/8 60 80 53402-0080 53412-0080 53403-0080 53413-0080 53404-0080 53414-0080 53405-0080 53415-0080
2-3/4 3-1/2 70 90 53402-0090 53412-0090 53403-0090 53413-0090 53404-0090 53414-0090 53405-0090 53415-0090
3-1/8
12 mm 12 mm 3-15/16 80 100 53402-0100 53412-0100 53403-0100 53413-0100 53404-0100 53414-0100 53405-0100 53415-0100
3-1/2 4-5/16 90 110 53402-0110 53412-0110 53403-0110 53413-0110 53404-0110 53414-0110 53405-0110 53415-0110
3-15/16 4-23/32 100 120 53402-0120 53412-0120 53403-0120 53413-0120 53404-0120 53414-0120 53405-0120 53415-0120
4-5/16 5-1/8 110 130 53402-0130 53412-0130 53403-0130 53413-0130 53404-0130 53414-0130 53405-0130 53415-0130
4-23/32 5-1/2 120 140 53402-0140 53412-0140 53403-0140 53413-0140 53404-0140 53414-0140 53405-0140 53415-0140
5-1/8 5-29/32 130 150 53402-0150 53412-0150 53403-0150 53413-0150 53404-0150 53414-0150 53405-0150 53415-0150
5-1/2 6-5/16 140 160 53402-0160 53412-0160 53403-0160 53413-0160 53404-0160 53414-0160 53405-0160 53415-0160
5-29/32 6-11/16 150 170 53402-0170 53412-0170 53403-0170 53413-0170 53404-0170 53414-0170 53405-0170 53415-0170
6-5/16 7-3/32 160 180 53402-0180 53412-0180 53403-0180 53413-0180 53404-0180 - 53405-0180 -
6-11/16 7-15/32 170 190 - 53412-0190 - 53413-0190 - - 53405-0190 -
7-3/32 7-7/8 180 200 - 53412-0200 - 53413-0200 - - 53405-0200 -

WHICH CLAMP IS RIGHT FOR ME?
Corrosion Resistance Material Composition Common Uses
430 Band & Housing
W2 Average Requirements Automotive • Truck Replacements • Industrial Applications
Plated Carbon Steel Screw
W3 Medium Requirements All 430 Stainless Steel Automotive OE • Industrial Applications

High Requirements Critical Connections in Cars such as Petrol Pipes • Close to Electronic Circuits
W4 All 304 Stainless Steel
Low Magnetic Permeability Agricultural Machinery • Motorbikes • Signs • General Outdoors • Stainless Steel Chimneys
Maximum Requirements
W5 Salt Water Resistant All 316 Stainless Steel Close to Electronic Circuits • Shipbuilding • Defense Technology • Food Processing
Sewage Treatment Facilities
Low Magnetic Permeability
