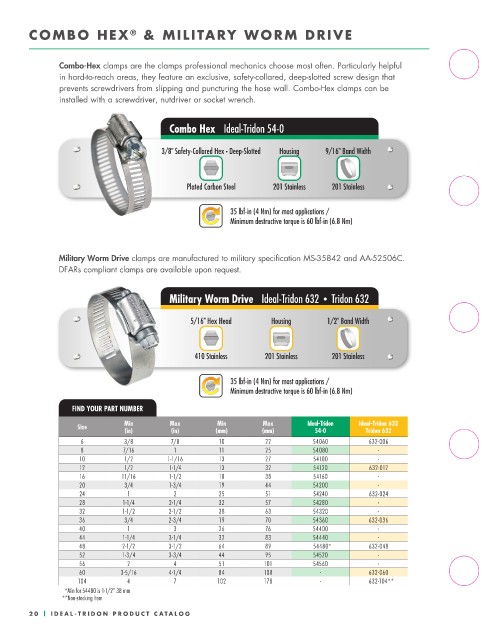

COMBO HEX & MILITARY WORM DRIVE
®

Combo-Hex clamps are the clamps professional mechanics choose most often. Particularly helpful
in hard-to-reach areas, they feature an exclusive, safety-collared, deep-slotted screw design that
prevents screwdrivers from slipping and puncturing the hose wall. Combo-Hex clamps can be
installed with a screwdriver, nutdriver or socket wrench.

Combo Hex Ideal-Tridon 54-0

3/8" Safety-Collared Hex • Deep-Slotted Housing 9/16" Band Width

Plated Carbon Steel 201 Stainless 201 Stainless

35 lbf-in (4 Nm) for most applications /
Minimum destructive torque is 60 lbf-in (6.8 Nm)

Military Worm Drive clamps are manufactured to military specification MS-35842 and AA-52506C.
DFARs compliant clamps are available upon request.

Military Worm Drive Ideal-Tridon 632 • Tridon 632

5/16" Hex Head Housing 1/2" Band Width

410 Stainless 201 Stainless 201 Stainless

35 lbf-in (4 Nm) for most applications /
Minimum destructive torque is 60 lbf-in (6.8 Nm)
FIND YOUR PART NUMBER

Size Min Max Min Max Ideal-Tridon Ideal-Tridon 632
(in) (in) (mm) (mm) 54-0 Tridon 632
6 3/8 7/8 10 22 54060 632-006
8 7/16 1 11 25 54080 -
10 1/2 1-1/16 13 27 54100 -
12 1/2 1-1/4 13 32 54120 632-012
16 11/16 1-1/2 18 38 54160 -
20 3/4 1-3/4 19 44 54200 -
24 1 2 25 51 54240 632-024
28 1-1/4 2-1/4 32 57 54280 -
32 1-1/2 2-1/2 38 63 54320 -
36 3/4 2-3/4 19 70 54360 632-036
40 1 3 26 76 54400 -
44 1-1/4 3-1/4 32 83 54440 -
48 2-1/2 3-1/2 64 89 54480* 632-048
52 1-3/4 3-3/4 44 95 54520 -
56 2 4 51 101 54560 -
60 3-5/16 4-1/4 84 108 - 632-060
104 4 7 102 178 - 632-104**
*Min for 54480 is 1-1/2" 38 mm
**Non-stocking item
