Page 13 - Ideal Catalog 2021
P. 13

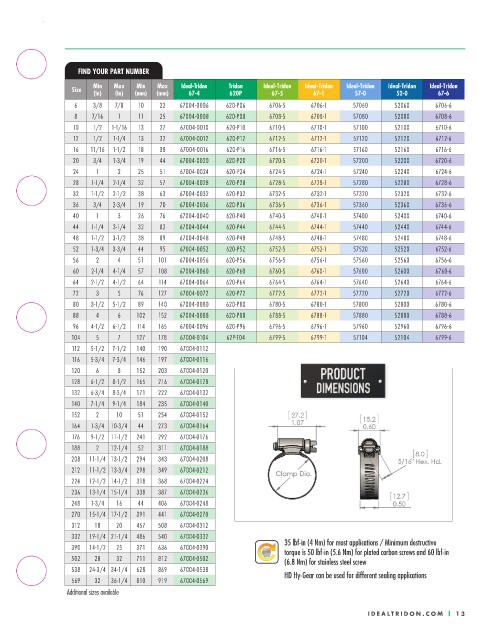

FIND YOUR PART NUMBER
Min Max Min Max Ideal-Tridon Tridon Ideal-Tridon Ideal-Tridon Ideal-Tridon Ideal-Tridon Ideal-Tridon
Size (in) (in) (mm) (mm) 67-4 620P 67-5 67-1 57-0 52-0 67-6
6 3/8 7/8 10 22 67004-0006 620-P06 6706-5 6706-1 57060 52060 6706-6
8 7/16 1 11 25 67004-0008 620-P08 6708-5 6708-1 57080 52080 6708-6
10 1/2 1-1/16 13 27 67004-0010 620-P10 6710-5 6710-1 57100 52100 6710-6
12 1/2 1-1/4 13 32 67004-0012 620-P12 6712-5 6712-1 57120 52120 6712-6
16 11/16 1-1/2 18 38 67004-0016 620-P16 6716-5 6716-1 57160 52160 6716-6
20 3/4 1-3/4 19 44 67004-0020 620-P20 6720-5 6720-1 57200 52200 6720-6
24 1 2 25 51 67004-0024 620-P24 6724-5 6724-1 57240 52240 6724-6
28 1-1/4 2-1/4 32 57 67004-0028 620-P28 6728-5 6728-1 57280 52280 6728-6
32 1-1/2 2-1/2 38 63 67004-0032 620-P32 6732-5 6732-1 57320 52320 6732-6
36 3/4 2-3/4 19 70 67004-0036 620-P36 6736-5 6736-1 57360 52360 6736-6
40 1 3 26 76 67004-0040 620-P40 6740-5 6740-1 57400 52400 6740-6
44 1-1/4 3-1/4 32 82 67004-0044 620-P44 6744-5 6744-1 57440 52440 6744-6
48 1-1/2 3-1/2 38 89 67004-0048 620-P48 6748-5 6748-1 57480 52480 6748-6
52 1-3/4 3-3/4 44 95 67004-0052 620-P52 6752-5 6752-1 57520 52520 6752-6
56 2 4 51 101 67004-0056 620-P56 6756-5 6756-1 57560 52560 6756-6
60 2-1/4 4-1/4 57 108 67004-0060 620-P60 6760-5 6760-1 57600 52600 6760-6
64 2-1/2 4-1/2 64 114 67004-0064 620-P64 6764-5 6764-1 57640 52640 6764-6
72 3 5 76 127 67004-0072 620-P72 6772-5 6772-1 57720 52720 6772-6
80 3-1/2 5-1/2 89 140 67004-0080 620-P80 6780-5 6780-1 57800 52800 6780-6
88 4 6 102 152 67004-0088 620-P88 6788-5 6788-1 57880 52880 6788-6
96 4-1/2 6-1/2 114 165 67004-0096 620-P96 6796-5 6796-1 57960 52960 6796-6
104 5 7 127 178 67004-0104 62P-104 6799-5 6799-1 57104 52104 6799-6
112 5-1/2 7-1/2 140 190 67004-0112
116 5-3/4 7-3/4 146 197 67004-0116
120 6 8 152 203 67004-0120
128 6-1/2 8-1/2 165 216 67004-0128
132 6-3/4 8-3/4 171 222 67004-0132
140 7-1/4 9-1/4 184 235 67004-0140
152 2 10 51 254 67004-0152
164 1-3/4 10-3/4 44 273 67004-0164
176 9-1/2 11-1/2 241 292 67004-0176
188 2 12-1/4 52 311 67004-0188
208 11-1/4 13-1/2 294 343 67004-0208
212 11-1/2 13-3/4 298 349 67004-0212
224 12-1/2 14-1/2 318 368 67004-0224
236 13-1/4 15-1/4 338 387 67004-0236
248 1-3/4 16 44 406 67004-0248
270 15-1/4 17-1/2 391 441 67004-0270
312 18 20 457 508 67004-0312
332 19-1/4 21-1/4 486 540 67004-0332 35 lbf-in (4 Nm) for most applications / Minimum destructive
390 14-1/2 25 371 636 67004-0390 torque is 50 lbf-in (5.6 Nm) for plated carbon screws and 60 lbf-in
502 28 32 711 812 67004-0502 (6.8 Nm) for stainless steel screw
538 24-3/4 34-1/4 628 869 67004-0538
HD Hy-Gear can be used for different sealing applications
569 32 36-1/4 810 919 67004-0569
Additional sizes available
12 | IDEAL-TRIDON PRODUCT CA T ALOG IDEAL TRIDON.COM | 13
