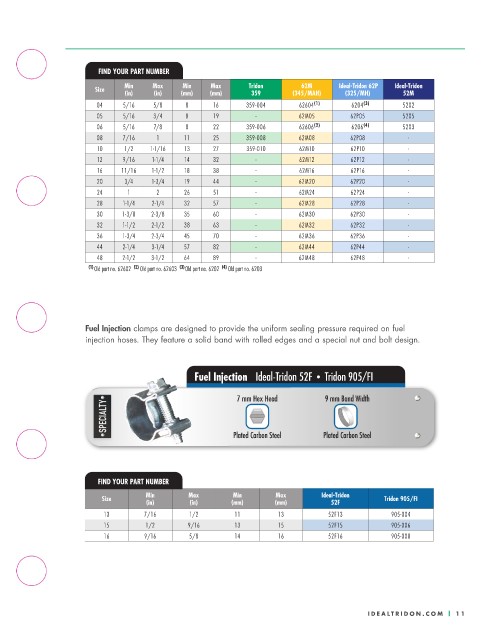

Page 11 - Ideal Catalog 2021

FIND YOUR PART NUMBER

Min Max Min Max Tridon 62M Ideal-Tridon 62P Ideal-Tridon
Size (in) (in) (mm) (mm) 359 (345/MAH) (325/MH) 52M
04 5/16 5/8 8 16 359-004 62604 (1) 6204 (3) 5202
05 5/16 3/4 8 19 - 62M05 62P05 5205
06 5/16 7/8 8 22 359-006 62606 (2) 6206 (4) 5203
08 7/16 1 11 25 359-008 62M08 62P08 -
10 1/2 1-1/16 13 27 359-010 62M10 62P10 -
12 9/16 1-1/4 14 32 - 62M12 62P12 -
16 11/16 1-1/2 18 38 - 62M16 62P16 -
20 3/4 1-3/4 19 44 - 62M20 62P20 -
24 1 2 26 51 - 62M24 62P24 -
28 1-1/4 2-1/4 32 57 - 62M28 62P28 -
30 1-3/8 2-3/8 35 60 - 62M30 62P30 -
32 1-1/2 2-1/2 38 63 - 62M32 62P32 -
36 1-3/4 2-3/4 45 70 - 62M36 62P36 -
44 2-1/4 3-1/4 57 82 - 62M44 62P44 -
48 2-1/2 3-1/2 64 89 - 62M48 62P48 -
(4)
(2)
(1) Old part no. 62602 Old part no. 62603 Old part no. 6202 Old part no. 6203
(3)

Fuel Injection clamps are designed to provide the uniform sealing pressure required on fuel
injection hoses. They feature a solid band with rolled edges and a special nut and bolt design.

Fuel Injection Ideal-Tridon 52F • Tridon 905/FI

7 mm Hex Head 9 mm Band Width

Plated Carbon Steel Plated Carbon Steel

FIND YOUR PART NUMBER
Size Min Max Min Max Ideal-Tridon Tridon 905/FI
(in) (in) (mm) (mm) 52F
13 7/16 1/2 11 13 52F13 905-004
15 1/2 9/16 13 15 52F15 905-006
16 9/16 5/8 14 16 52F16 905-008
