Single-Ear Pinch / Crimp Clamps and Tool

Pinch clamps are designed to fit most popular polyethylene and polybutylene water service lines, and are perfect for sprinkler systems, irrigation systems and most other low-pressure applications.

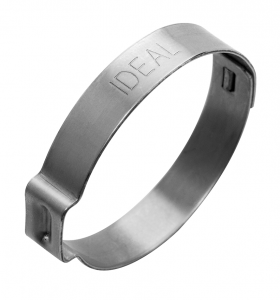

Ideal-Tridon® 61 Series

  • Marine Grade Clamps
  • All 300 stainless steel for excellent corrosion resistance
  • Welded construction for superior strength
  • Easy installation
  • Permanent, tamper-proof 360° seal
  • Compatible with most clinching tools

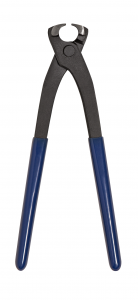

Crimp Clamp Tool

Part No. 6100158 — Use to install or remove pinch / crimp clamps.

How to determine proper pinch/crimp clamp size: Measure actual outside diameter (O.D.) of the hose on the fitting. Select the nominal size clamp nearest to that size, but always larger than the O.D. of the hose on the fitting.

Find Your Part Number

Part No.Nominal Dia. (in)Min (in)Max (in)Min (mm)Max (mm)Quantity Per Bag
611983/40.6690.7791720100
6121013/160.7160.8271821100
6125610.8981.0082325100
612711-1/160.9451.0672427100
613161-1/41.1221.2442931100
613311-5/161.1811.3033033100
613461-3/81.2401.3623234100
614101-5/81.4921.6143841100
614251-11/161.5511.6734042100
614851-7/81.7871.9094648100
