Automotive & Light Duty Application—Heater Hose Connection
- All 300 grade construction
- A variety of static and spring styles to choose from
- High sealing pressure/high residual torque help with the joint sealing pressure
- Clamps are sized to your specific application

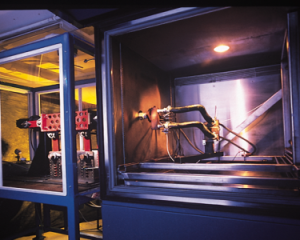

- Our engineers have sophisticated pressure, vibration and thermal test equipment (PVT) that we can use to simulate real world coolant application conditions. We can test your entire application to industry norms (eg. SAE 1610) or to your unique specification. By working with us, you can validate the entire joint to give you the confidence you need to launch.
Product Data
Imperial Data
| Type | Band & Housing Material | Screw Material | Band Width (in) | Band Thickness (in) | Screw Size (in) | Max Torque (in-lbs) | Salt Spray Hours |
| Standard Gear Clamps | |||||||
| NP* 9mm | 300 SS | 300 SS | 0.356 | 0.024 | 0.28 (7mm) | 40.0 | 240 |
| Hy-Gear 7/16″ | 300 SS | 410 SS | 0.400 | 0.022 | 0.28 (7mm) | 50.0 | 240 |
| NP* 12mm | 300 SS | 300 SS | 0.478 | 0.031 | 0.28 (7mm) | 72.0 | 240 |
| Hy-Gear 1/2″ | 300 SS | 300 SS | 0.500 | 0.022 | 5/16″ | 75.0 | 240 |
| Hy-Gear 9/16″ | 300 SS | 300 SS | 0.562 | 0.022 | 5/16″ | 100.0 | 240 |
| Spring Loaded Gear Clamps | |||||||
| SmartSeal NP* 9mm | 300 SS | 300 SS | 0.478 | 0.024 | 0.28 (7mm) | 40.0 | 240 |
| SmartSeal 7/16″ | 300 SS | 410 SS | 0.478 | 0.022 | 0.28 (7mm) | 50.0 | 240 |
| SmartSeal NP* 12mm | 300 SS | 300 SS | 0.590 | 0.031 | 0.28 (7mm) | 72.0 | 240 |
| SmartSeal 1/2″ | 300 SS | 410 SS | 0.590 | 0.023 | 5/16″ | 75.0 | 240 |
| Flex-Gear 9/16″ | 300 SS | 410 SS | 0.562 | 0.024 | 5/16″ | 85.0 | 240 |
| SmartSeal 9/16″ | 300 SS | 410 SS | 0.640 | 0.026 | 5/16″ | 100.0 | 240 |
Metric
| Type | Band & Housing Material | Screw Material | Band Width (mm) | Band Thickness (mm) | Screw Size (mm) | Max Torque (N·m) | Salt Spray Hours |
| Standard Gear Clamps | |||||||
| NP* 9mm | 300 SS | 300 SS | 9.0 | 0.60 | 7.0 | 4.5 | 240 |
| Hy-Gear 7/16″ | 300 SS | 410 SS | 10.5 | 0.55 | 7.0 | 5.6 | 240 |
| NP* 12mm | 300 SS | 300 SS | 12.0 | 0.80 | 7.0 | 8.1 | 240 |
| Hy-Gear 1/2″ | 300 SS | 300 SS | 12.7 | 0.55 | 7.4 (5/16″) | 8.3 | 240 |
| Hy-Gear 9/16″ | 300 SS | 300 SS | 14.3 | 0.55 | 7.4 (5/16″) | 11.1 | 240 |
| Spring Loaded Gear Clamps | |||||||
| SmartSeal NP* 9mm | 300 SS | 300 SS | 12.0 | 0.60 | 7.0 | 4.5 | 240 |
| SmartSeal 7/16″ | 300 SS | 410 SS | 12.0 | 0.55 | 6.0 | 5.6 | 240 |
| SmartSeal NP* 12mm | 300 SS | 300 SS | 15.0 | 0.80 | 7.0 | 8.1 | 240 |
| SmartSeal 1/2″ | 300 SS | 410 SS | 15.0 | 0.55 | 7.4 (5/16″) | 8.3 | 240 |
| Flex-Gear 9/16″ | 300 SS | 410 SS | 14.3 | 0.61 | 7.4 (5/16″) | 9.6 | 240 |
| SmartSeal 9/16″ | 300 SS | 410 SS | 16.3 | 0.66 | 7.4 (5/16″) | 11.1 | 240 |
* NP = Non Perforated Style Clamp
Additional material configurations are available. Whether you want standardized product or specialized attention, ask us how we can help you. We can design, produce and supply custom clamp products in for your application. Get started today by telling us about your application.
