SPRING CLAMPS

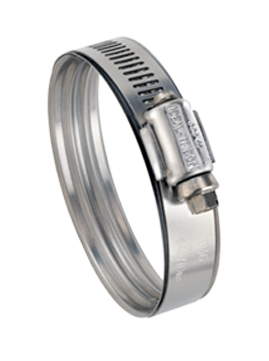

WaveSeal360® 36003

36003

WaveSeal360 clamps are comprised of two main parts, the clamp assembly and the wave profile SmartLiner. The wave profile SmartLiner  is high quality, thin gauge  stainless steel specifically tempered to expand and contract with temperature variations. The clamp rides on SmartLiner so pressure is more evenly distributed around the hose.

Applications include radiators, turbo charged applications, solar panels, vehicle HVAC, pipe fluid connectors, soft hose applications, generators, home appliances, tractors/trucks and most vehicle fluid applications.

Material Specifications

Screw: 5/16″ Hex Head, 410 Stainless

Housing: 300 Stainless

Band: 9/16″, 300 Stainless

9/16″ Spring Liner: 300 Stainless

Installation Torque: 70 in-lbs (7.9 Nm)

Find Your Part Number

SizeMin (in)Max (in)Min (mm)Max (mm)WaveSeal 360 36003
161-3/321-5/162835.536003-0016
201-1/81-9/16294036003-0020
221-7/161-11/16364336003-0022
241-1/21-13/16384636003-0024
281-3/42-1/16435236003-0028
321-15/162-5/16485936003-0032
3422-7/16506236003-0034
362-1/82-9/16536536003-0036
402-5/162-13/16587136003-0040
442-1/23-1/16637836003-0044
482-11/163-5/16678436003-0048
522-7/83-9/16739136003-0052
563-1/163-13/16779736003-0056
603-1/44-1/168210336003-0060
643-7/164-5/168711036003-0064
723-3/44-13/169612236003-0072
804-3/165-5/1610513536003-0080
884-1/25-13/1611514836003-0088
1045-3/86-13/1613617336003-0104

Additional sizes available.

Attractive Packaging

image_blisters_pg37_web
image_bags_pg36_web
image_subpacks_pg37_web
