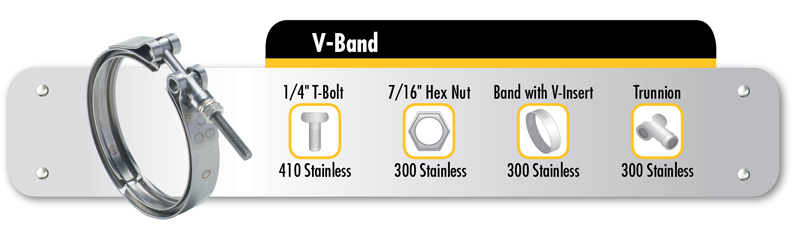

V-Bands

V-Bands seal connections for flanged joints. Typical applications include filter housings, turbocharger systems, exhaust systems, emissions and industrial applications where a flanged connection is required. V-inserts can be manufactured to OE specifications and are made to order. Additional alloys are available for severe environments.

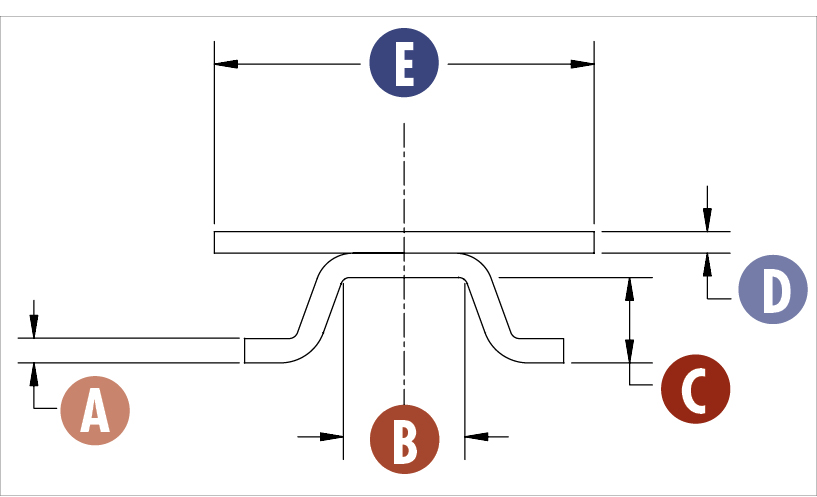

How to Specify Your V-Band

v-band-chart

Find Your Part Number

Nominal Diameter (in)V-Insert AV-Insert BV-Insert CBand DBand EIDEAL-TRIDON 24000
2.880.0600.2070.2810.0350.75024000-0288
3.210.0500.2620.1410.0350.75024000-0321
3.820.0770.2070.2810.0400.87524000-0382
4.060.0770.2390.2810.0500.87524000-0406
4.130.0500.2620.1410.0350.75024000-0413
4.190.0500.4000.2810.0400.87524000-0419
4.250.0500.4000.2810.0400.87524000-0425
4.50.0770.2070.2810.0400.87524000-0450
4.610.0500.1560.2810.0350.75024000-0461
4.750.0500.4000.2810.0790.87524000-0475
4.810.0770.2070.2810.0400.87524000-0481
4.940.0500.1810.2810.0350.75024000-0494
5.250.0500.2620.1410.0350.75024000-0525
5.810.0770.2070.2810.0620.87524000-0581
5.880.0500.4000.2810.0790.87524000-0588
5.920.0900.2930.2960.0500.87524000-0592

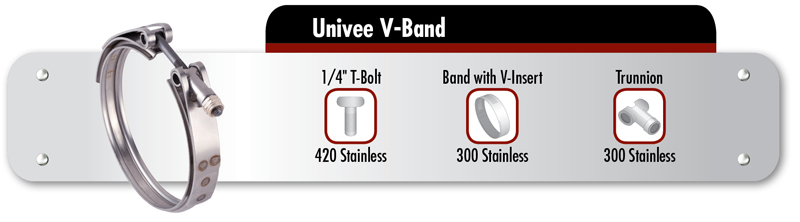

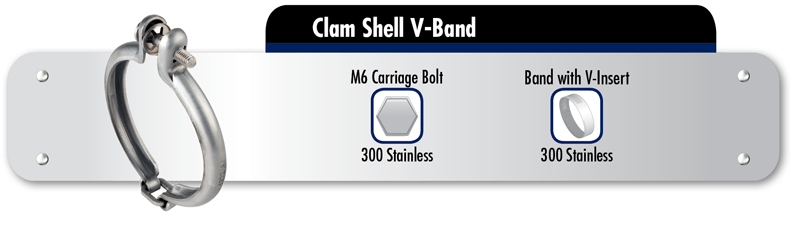

Specialty V-Bands for specific OE applications are available, such as the Univee and the Clam Shell. For information on how we can custom engineer a product for your specific application, contact your IDEAL-TRIDON sales representative.
