Heavy Duty

Nominal Diameter Sized

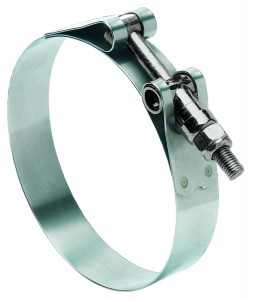

Standard T-Bolt 30050

Heavy duty T-Bolt 30050 clamps provide uniform sealing pressure for a positive, reliable seal. Specifically designed for use in high vibration and large diameter applications. The most widely used t-bolt design. Typical applications include truck air intake systems, cold side charge air systems, off-road equipment and industrial machinery.

Material Specifications

T-Bolt: 1/4″ Plated Carbon Steel

Hex Nut: 7/16″ Plated Carbon Steel, Nylon Insert

Band: 3/4″, 300 Stainless

Bridge: 3/4″, 300 Stainless

Trunnion: Plated Carbon Steel

Installation Torque: 75 in-lbs (8.5 Nm)

Find Your Part Number

Nominal Diameter (in)Nominal Diameter (mm)Min (in)Max (in)Min (mm)Max (mm)IDEAL-TRIDON 30050
1.3133.31.251.4131.835.730050-0131
1.5038.11.341.5634.139.730050-0150
1.6341.41.471.6937.443.030050-0163
1.7544.51.591.8140.546.030050-0175
1.8847.81.721.9443.849.330050-0188
2.0050.81.842.0646.852.430050-0200
2.1253.81.962.1849.955.430050-0212
2.2557.22.092.3153.258.730050-0225
2.3860.52.222.4456.562.030050-0238
2.5063.52.342.5659.565.130050-0250
2.5665.02.332.6259.166.630050-0256
2.6366.82.402.6960.968.430050-0263
2.7569.92.522.8163.971.430050-0275
2.8873.22.652.9467.274.730050-0288
3.0076.22.773.0670.377.830050-0300
3.1279.22.873.1872.880.830050-0312
3.2582.63.023.3176.684.130050-0325
3.5088.93.273.5683.090.530050-0350
3.6291.93.393.6886.093.530050-0362
3.7595.33.523.8189.396.830050-0375
3.8297.03.593.8891.198.630050-0382
4.00101.63.774.0695.7103.230050-0400
4.25108.04.024.31102.0109.530050-0425
4.50114.34.274.56108.4115.930050-0450
4.75120.74.524.81114.7122.230050-0475
5.00127.04.775.06121.1128.630050-0500
5.25133.45.025.31127.4134.930050-0525
5.50139.75.275.56133.8141.330050-0550
5.75146.15.525.81140.1147.630050-0575
6.00152.45.776.06146.5154.030050-0600
6.25158.86.026.31152.8160.330050-0625
6.50165.16.276.56159.2166.730050-0650
6.75171.56.526.81165.5173.030050-0675
7.00177.86.777.06171.9179.430050-0700
7.25184.27.027.31178.2185.730050-0725
7.50190.57.277.56184.6192.130050-0750
8.00203.27.778.06197.3204.830050-0800
8.25209.68.028.31203.6211.130050-0825
8.50215.98.278.56210.0217.530050-0850
8.88225.68.658.94219.6227.130050-0888
9.00228.68.779.06222.7230.230050-0900
9.50241.39.279.56235.4242.930050-0950
10.00254.09.7710.06248.1255.630050-1000
10.88276.410.6510.94270.4277.930050-1088
12.00304.811.7712.06298.9306.430050-1200
12.88327.212.6512.94321.2328.730050-1288

Additional sizes available.
