Heavy Duty

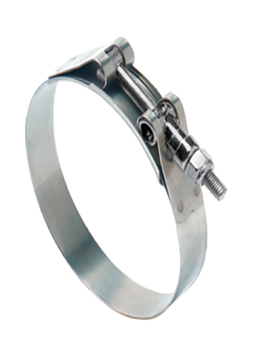

Channel Bridge T-Bolt 30021

30021

Channel Bridge T-Bolt 30021 clamps provide uniform sealing pressure for a positive, reliable seal. Specifically designed for use in high vibration and large diameter applications. The most widely used t-bolt design. Typical applications include truck air intake systems, cold side charge air systems, off-road equipment and industrial machinery.

Material Specifications

T-Bolt: 1/4″ 300 Stainless

Hex Nut: 7/16″ 300 Stainless, Nylon Insert

Band: 3/4″, 300 Stainless

Bridge: 3/4″, 300 Stainless

Trunnion: 300 Stainless

Installation Torque: 75 in-lbs (8.5 Nm)

Find Your Part Number

SizeMin (in)Max (in)Min (mm)Max (mm)IDEAL-TRIDON 30021
1381.381.5735.139.930021-0138
1501.501.6938.142.930021-0138
1631.631.8841.347.830021-0163
1751.752.0044.550.830021-0175
1881.882.1947.655.630021-0188
2002.002.3150.858.730021-0200
2132.132.4454.162.030021-0213
2252.252.5657.265.030021-0225
2382.382.6960.368.330021-0238
2502.502.8163.571.430021-0250
2632.632.9466.774.730021-0263
2752.753.0669.977.730021-0275
2882.883.1973.081.030021-0288
3003.003.3176.284.130021-0300
3133.133.4479.487.430021-0313
3253.253.5682.690.430021-0325
3383.383.6985.793.730021-0338
3503.53.8188.996.830021-0350
3633.633.9492.1100.130021-0363
3753.754.0695.3103.130021-0375
4004.004.31101.6109.530021-0400
4254.254.56108.0115.830021-0425
4504.504.81114.3122.230021-0450
4754.755.06120.7128.530021-0475
5005.005.31127.0134.930021-0500
5255.255.56133.4141.230021-0525
5505.55.81139.7147.630021-0550
5755.756.06146.1153.930021-0575
6006.006.31152.4160.330021-0600
6256.256.56158.8166.630021-0625
6506.56.81165.1173.030021-0650
6756.757.06171.5179.330021-0675
7007.007.31177.8185.730021-0700
7257.257.56184.2192.030021-0725
7507.507.81190.5198.430021-0750
7757.758.06196.9204.730021-0775
8008.008.31203.2211.130021-0800
8258.258.56209.6217.430021-0825
8508.508.81215.9223.830021-0850

Additional sizes available.
