Specialty

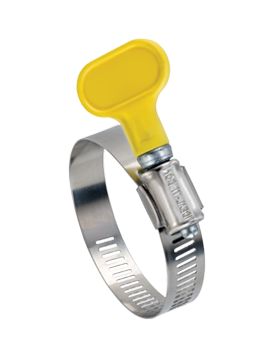

TURN-KEY® 5Y/6Y

5Y

Turn-Key clamps offer innovative design and install with a simple hand twist. No tools are required. Remove the reusable plastic screw cap for a tamper-resistant connection.

Applications include dryer vents, filter bags, RV sewer hoses, cable and wire bundling.

Material Specifications

Screw: Capped Head; Plated Carbon Steel

Housing: 300 Stainless

5Y Band: 1/2″; 200 Stainless

6Y Band: 5/16″

5Y Installation Torque: 35 in-lbs (4 Nm)

6Y Installation Torque: 15 in-lbs (1.7 Nm)

Find Your Part Number

*Comes with 2 clamps per Blister Pack
SizeMin (in)Max (in)Min (mm)Max (mm)IDEAL-TRIDON 5Y/6YIDEAL-TRIDON Blister Packs
45/165/88166Y004ǂ
63/87/810226Y006ǂ
121/21-1/413325Y0125Y01258*
203/41-3/419445Y0205Y02058*
281-1/42-1/432575Y0285Y02858*
361-3/42-3/444705Y0365Y03658*
482-1/23-1/264895Y0485Y04858*
642-1/24-1/2641145Y0645Y06458*
Assortment OptionsIDEAL-TRIDON Blister Packs
ǂ Micro Assortment: Two each of size 4 and size 66Y00458
6-Pack Assortment: One each of size 4, 6, 12, 20, 28, 365Y00158

Attractive Packaging
