Surelock 49

49

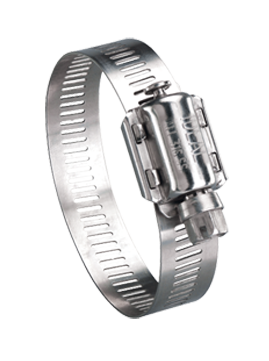

Surelock Quick Engage worm drive clamps have a bind-free, pull-through design for fast installation.  Captured screw design for quick fastening and trouble-free tensioning.  Extended housing engages 25% more screw threads than competitive designs.

Applications include general purpose, corrosive environments, cable bundling and hanging of light weight signs.

Material Specifications

Screw: 5/16″ Hex Head; 316 Stainless

Two-Piece Housing: 316 Stainless

Band: 9/16″ 316 Stainless

Installation Torque: 40 in-lbs (4.5 Nm)

Find Your Part Number

SizeMin (in)Max (in)Min (mm)Max (mm)IDEAL-TRIDON 49
321-1/42-1/2326449032
72255112749073
801-13/165-1/24814049080
104275117849104
1284-1/48-1/210821649128
1807-3/411-3/419729849180
1906-3/812-3/816231449190
21811-3/1614-5/1628435949218
24212-11/1615-5/832339749242
25813-11/1616-5/834842249258
28215-3/1618-1/838646049282
30614-1/1619-5/835749849306

All sizes are shipped disengaged.
