Surelock 48

48

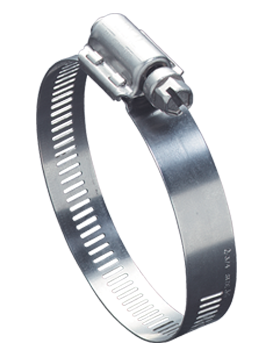

Surelock Quick Engage worm drive clamps have a bind-free, pull-through design for fast installation.  Captured screw design for quick fastening and trouble-free tensioning.  Extended housing engages 25% more screw threads than competitive designs.

Applications include general purpose, corrosive environments, cable bundling and hanging of light weight signs.

Material Specifications

Screw: 5/16″ Hex Head; 305 Stainless

Two-Piece Housing: 304 Stainless

Band: 9/16″, 304 Stainless

Installation Torque: 40 in-lbs (4.5 Nm)

Find Your Part Number

SizeMin (in)Max (in)Min (mm)Max (mm)IDEAL-TRIDON 48
121/21-1/4133248012
203/41-3/4194448020
243/42195148024
2812-1/4255748028
321-1/42-1/2326448032
367/82-3/4227048036
4813-1/2258948048
56142510248056
72255112748072
801-13/165-1/24814048080
88265115248088
104275117848104
1161-3/47-3/44419648116
1284-1/48-1/210821648128
15241010225448152
1807-3/411-3/419729848180
1886-1/412-1/415931148188
1906-3/812-3/816231448190
21811-3/1614-5/1628435948218
2248-1/214-1/221636848224
23291522938148232
24212-11/1615-5/832339748242
2482-1/2166340648248
25813-11/1616-5/834842248258
27211-1/217-1/229244548272
28215-3/1618-1/838646048282
28812-1/218-1/231847048288
30614-1/1619-5/835749848306
3122-3/8206050848312

Sizes available up to size 598. Sizes 80 and above are shipped disengaged.
