Specialty

Snaplock® 58-0

58

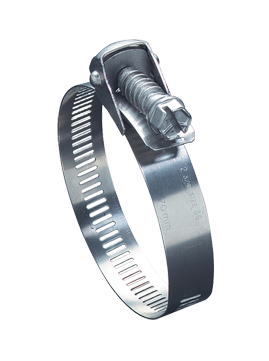

Snaplock Quick Release worm drive clamps are good for closed system applications where the clamp must be disengaged to be applied. The swivel-action locking of screw to band makes installation and removal much faster.

Applications include general purpose, mild-corrosive environments, cable bundling and hanging of light weight signs.

Material Specifications

Screw: 3/8″ Hex Head; 410 Stainless

Housing: 200 Stainless

Bridge: 410 Stainless

Band: 9/16″, 200 Stainless

Installation Torque: 30 in-lbs (3.4 Nm)

Find Your Part Number

SizeMin (in)Max (in)Min (mm)Max (mm)IDEAL-TRIDON 58-0
121/21-1/413325812
203/41-3/419445820
241-1/16227515824
2812-1/425575828
3612-3/420705836
481-1/23-1/239895848
5614251025856
7225511275872
8826511525888
1042-7/874517858104
1161-3/47-3/44519758116
1281-3/48-1/24521658128
1522105125458152
188212-1/45131158188
2242-1/214-1/46436258224
332221-1/45154058332
