Snaplock 56-0

56

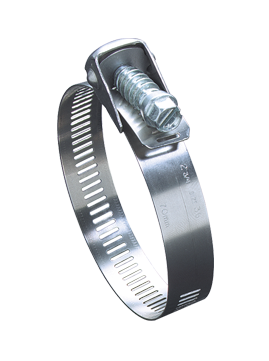

Snaplock Quick Release worm drive clamps are good for closed system applications where the clamp must be disengaged to be applied. The swivel-action locking of screw to band makes installation and removal much faster.

Applications include general purpose, mild-corrosive environments, cable bundling and hanging of light weight signs.

Material Specifications

Screw: 5/16″ Hex Head, Plated Carbon Steel

Housing: 200 Stainless

Bridge: Plated Carbon Steel

Band: 9/16″, 200 Stainless

Installation Torque: 30 in-lbs (3.4 Nm)

Find Your Part Number

SizeMin (in)Max (in)Min (mm)Max (mm)IDEAL-TRIDON 56-0
121/21-1/4133256120
203/41-3/4194456200
241-1/162275156240
2812-1/4255756280
3612-3/4257056360
481-1/23-1/2398956480
56142510256560
72255112756720
88265115256880
1042-7/874517856104
1161-3/47-3/44519756116
1281-3/48-1/24521656128
1361-3/494522856136
1522105125456152
188212-1/45131156188
23213-1/81533338156232
2581-15/1616-5/85042256258
2722175243256272
2881-13/1618-1/24547056288
332221-1/45154056332
