Specialty

Lox-On® 69-0

69

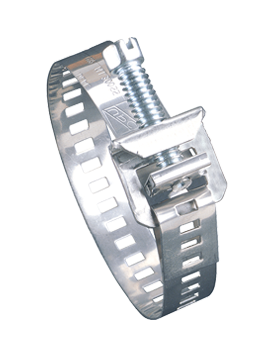

Lox-On clamps are for extra-tough installations. The unique design provides double-locking security with a 300 stainless steel buckle and high band tension for high sealing pressures.

Applications include plastic pipe applications and irrigation or sprinkler systems.

Material Specifications

Screw: 5/16″ Hex Head, 305 Stainless

Housing: 300 Stainless

Band: 1/2″, 300 Stainless

Installation Torque: 35 in-lbs (4 Nm)

Product ships flat, shown engaged for illustration purposes only

Find Your Part Number

SizeMin (in)Max (in)Min (mm)Max (mm)Band Length (in)Band Length (mm)IDEAL-TRIDON 69-0
1211/161-1/417324-13/1612269120
2011/161-3/417446-13/3216369200
3211/162-5/817678-29/3222669320
721-3/454412716-5/1641469720
10447-1/410218423-5/1659269104
