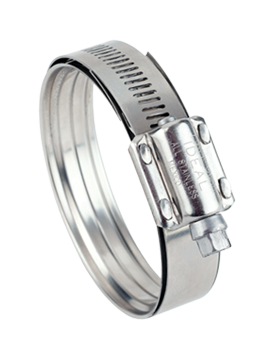

SmartSeal® HD 38215

38215

SmartSeal HD is comprised of two main parts, the clamp assembly and the SmartLiner which features an extra wide 5/8” heavy gauge band with a wide profile housing that provides maximum engagement of screw threads to the band.

Applications include heavy duty turbo charged (CAC and hot side) applications and coolant system applications with various OEM’s.

Material Specifications

Screw: 5/16″ Hex Head; 410 Stainless

Housing: 300 Stainless

Band: 5/8″; 300 Stainless

5/8″ Spring Liner: 300 Stainless

Installation Torque: 100 in-lbs (11.3 Nm)

Find Your Part Number

SizeMin (in)Max (in)Min (mm)Max (mm)SmartSeal HD 38215
2381-5/82-1/8425438215-0238
2621-7/82-3/8486138215-0262
27522-1/2526438215-0275
2882-1/82-5/8556738215-0288
3002-1/42-3/4587038215-0300
3252-1/23647738215-0325
3502-3/43-1/4708338215-0350
3752-7/83-1/2749038215-0375
4003-1/83-3/4799638215-0400
4253-5/1648410338215-0425
4503-7/164-1/48810938215-0450
5124-1/164-7/810312538215-0512
5624-9/165-3/811513738215-0562
6125-1/165-7/812815038215-0612

Additional sizes available.
