Heavy Duty

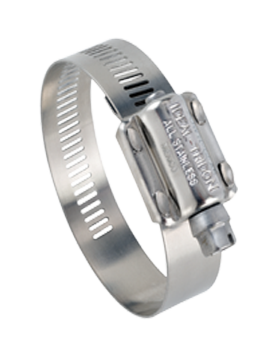

Pow’r-Gear® 6X

Premium Pow’r-Gear 6X clamps are designed for high vibration and stubborn leakage applications such as industrial machinery, heavy truck, farm and off-road equipment engines. Only five sizes cover clamping diameters from 1 1/4″ to 10 1/8″, minimizing inventory investment without compromising application coverage. Extra band notches allow greater opened and closed working diameters and extra wide 5/8″ band and a wide profile housing provides maximum engagement of screw threads to band. Engineered to deliver exceptionally high rates of band tension to handle the toughest sealing jobs.

Material Specifications

Screw: 5/16″ Hex Head; 410 Stainless

Housing: 300 Stainless

Band: 5/8″, 300 Stainless

Installation Torque: 75-90 in-lbs (8.5-10 Nm)

Find Your Part Number

SizeMin (in)Max (in)Min (mm)Max (mm)IDEAL-TRIDON 6X
2621-1/42-5/832666X200
41224-1/851105
6X300
61246-1/81021556X400
91269-1/81532316X500
1012710-1/81782576X600

Additional sizes available.
