HEAVY DUTY

Pow’r-Gear® 6P

6P

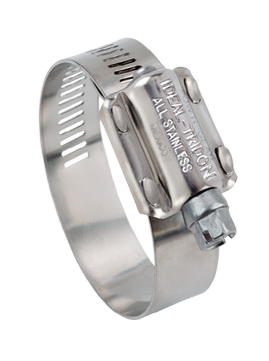

Pow’r-Gear clamps are designed for high vibration and stubborn leakage applications such as industrial machinery, heavy truck, farm and off-road equipment engines. Features an extra wide 5/8″ band and a wide profile housing that provides maximum engagement of screw threads to band. Engineered to deliver exceptionally high rates of band tension to handle the toughest sealing jobs. 6P and 6M Series are all 300 grade stainless steel.

Material Specifications

Screw: 5/16″ Hex Head; 305 Stainless

Housing: 300 Stainless

Band: 5/8″, 300 Stainless

Installation Torque: 75 to 90 in-lbs (8.5 to 10 Nm)

Find Your Part Number

SizeMin (in)Max (in)Min (mm)Max (mm)IDEAL-TRIDON 6P
17511-3/425456P175
2121-1/42-1/832546P200
2621-3/42-5/845666P250
3122-1/43-1/857796P300
3622-3/43-5/870926P350
4123-1/44-1/8831056P400
4623-3/44-5/8951176P450
5124-1/45-1/81081306P500
5624-3/45-5/81211436P550
6125-1/46-1/81331556P600
6625-3/46-5/81461686P650
7126-1/47-1/81591816P700
7626-3/47-5/81721936P750
8127-1/48-1/81842066P800
8627-3/48-5/81972196P850
9128-1/49-1/82102326P900
