Heavy Duty

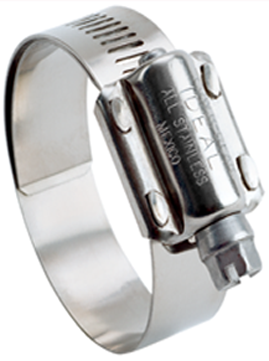

Pow’r-Gear® 6L

6M

Pow’r-Gear clamps are designed for high vibration and stubborn leakage application such as industrial machinery, heavy truck, farm and off-road equipment or engines. Features extra wide 5/8″ band and housing. Delivers high rates of band tension.

Material Specifications

Screw: 5/16″ Hex Head; 410 Stainless

Housing: 300 Stainless

Band: 5/8″; 300 Stainless

Installation Torque: 75-90 in-lbs. (8.5-10 Nm)

Find Your Part Number

SizeMin (in)Max (in)Min (mm)Max (mm)IDEAL-TRIDON 6LTRIDON M843
17511-3/425456L175843-175
2121-1/42-1/832546L200843-200
2621-3/42-5/845666L250843-250
3122-1/43-1/857796L300843-300
3622-3/43-5/870926L350843-350
4123-1/44-1/8831056L400843-400
4623-3/44-5/8951176L450843-450
5124-1/45-1/81081306L500843-500
5624-3/45-5/81211436L550843-550
6125-1/46-1/81331556L600843-600
6625-3/46-5/81461686L650843-650
7126-1/47-1/81591816L700843-700
7626-3/47-5/81721936L750843-750
8127-1/48-1/81842066L800843-800
8627-3/48-5/81972196P850843-850
9128-1/49-1/82102326L900843-900
