Heavy Duty

Pow’r-Gear® 60

60

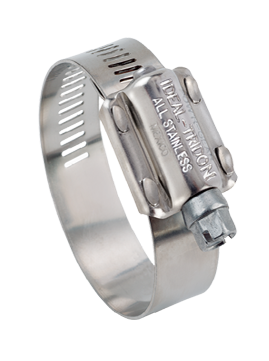

Pow’r-Gear high performance clamps are designed for high vibration and stubborn leakage applications such as industrial machinery, heavy truck, farm and off-road equipment engines. Pow’r-Gears feature an extra wide 5/8″ heavy gauge band and a wide profile housing that provides maximum engagement of screw threads to band. Engineered to deliver exceptionally high rates of band tension to handle the toughest sealing jobs.

Material Specifications

Screw: 5/16″ Hex Head; 410 Stainless Steel

Housing: 300 Stainless

Band: 5/8″, 300 Stainless

Installation Torque: 75 to 90 in-lbs (8.5 to 10 Nm)

Find Your Part Number

SizeMin (in)Max (in)Min (mm)Max (mm)IDEAL-TRIDON 60TRIDON M850
17511-3/4254560175850-175
2121-1/42-1/8325460200850-200
2621-3/42-5/8456660250850-250
3122-1/43-1/8577960300850-300
3622-3/43-5/8709260350850-350
4123-1/44-1/88310560400850-400
4623-3/44-5/89511760450850-450
5124-1/45-1/810813060500850-500
5624-3/45-5/812114360550850-550
6125-1/46-1/813315560600850-600
6625-3/46-5/814616860650850-650
7126-1/47-1/815918160700850-700
7626-3/47-5/817219360750850-750
8127-1/48-1/818420660800850-800
8627-3/48-5/819721960850850-850
9128-1/49-1/821023260900850-900
