Worm Gear

Non-Perforated 12 mm Band

12mm

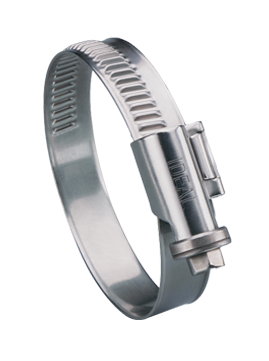

12mm Non-Perforated (embossed) band clamp is specially designed for use with silicone rubber and other soft hose applications. Available in material configurations from W2 for average requirements to W5 for critical environments, there is an option for most automotive, marine, and industrial applications.

Installation Torque:
44 in-lbs (5.0 Nm) for most applications

Material Specifications

Corrosion ResistanceMaterial CompositionCommon Uses
W2Average Requirements430 Band & Housing
Plated Carbon Steel Screw
Automotive • Truck Replacements • Industrial Applications
W3Medium RequirementsAll 430 Stainless SteelAutomotive OE • Industrial Applications
W4High Requirements
Low Magnetic Permeability
All 304 Stainless SteelCritical Connections in Cars such as Petrol Pipes • Close to Electronic Circuits • Agricultural Machinery • Motorbikes • Signs • General Outdoors • Stainless Steel Chimneys
W5Maximum Requirements
Salt Water Resistant
Low Magnetic Permeability
All 316 Stainless SteelClose to Electronic Circuits • Shipbuilding • Defense Technology • Food Processing • Sewage Treatment Facilities

IDEAL-TRIDON Part Numbers

Min (in)Max (in)Min (mm)Max (mm)W2W3W4W5
5/81-1/16162753402-002753403-002753404-002753405-0027
25/321-1/4203253402-003253403-003253404-003253405-0032
11-9/16254053402-004053403-004053404-004053405-0040
1-3/161-3/4304553402-004553403-004553404-004553405-0045
1-1/41-31/32325053402-005053403-005053404-005053405-0050
1-9/162-3/8406053402-006053403-006053404-006053405-0060
1-31/322-3/4507053402-007053403-007053404-007053405-0070
2-3/162-15/16557553402-007553403-007553404-007553405-0075
2-3/83-1/8608053402-008053403-008053404-008053405-0080
2-3/43-1/2709053402-009053403-009053404-009053405-0090
3-1/83-15/168010053402-010053403-010053404-010053405-0100
3-1/24-5/169011053402-011053403-011053404-011053405-0110
3-15/164-23/3210012053402-012053403-012053404-012053405-0120
4-5/165-1/811013053402-013053403-013053404-013053405-0130
4-23/325-1/212014053402-014053403-014053404-014053405-0140
5-1/85-29/3213015053402-015053403-015053404-015053405-0150
5-1/26-5/1614016053402-016053403-016053404-016053405-0160
5-29/326-11/1615017053402-017053403-017053404-017053405-0170
6-5/167-3/3216018053402-018053403-018053404-018053405-0180
6-11/167-15/3217019053405-0190
7-3/327-7/818020053405-0200

TRIDON Part Numbers

Min (in)Max (in)Min (mm)Max (mm)W2W3W4W5
5/81-1/16162753412-002753413-002753414-002753415-0027
25/321-1/4203253412-003253413-003253414-003253415-0032
11-9/16254053412-004053413-004053414-004053415-0040
1-3/161-3/4304553412-004553413-004553414-004553415-0045
1-1/41-31/32325053412-005053413-005053414-005053415-0050
1-9/162-3/8406053412-006053413-006053414-006053415-0060
1-31/322-3/4507053412-007053413-007053414-007053415-0070
2-3/162-15/16557553412-007553413-007553414-007553415-0075
2-3/83-1/8608053412-008053413-008053414-008053415-0080
2-3/43-1/2709053412-009053413-009053414-009053415-0090
3-1/83-15/168010053412-010053413-010053414-010053415-0100
3-1/24-5/169011053412-011053413-011053414-011053415-0110
3-15/164-23/3210012053412-012053413-012053414-012053415-0120
4-5/165-1/811013053412-013053413-013053414-013053415-0130
4-23/325-1/212014053412-014053413-014053414-014053415-0140
5-1/85-29/3213015053412-015053413-015053414-015053415-0150
5-1/26-5/1614016053412-016053413-016053414-016053415-0160
5-29/326-11/1615017053412-017053413-017053414-017053415-0170
6-5/167-3/3216018053412-018053413-0180
6-11/167-15/3217019053412-019053413-0190
7-3/327-7/818020053412-020053413-0200
