Worm Gear

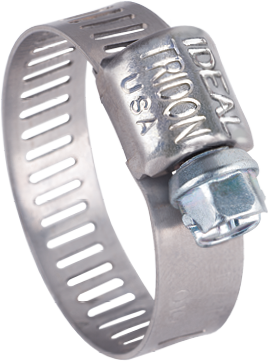

MICRO-GEAR® 62P

62P

Micro-Gear 62P clamps are tiny, tough and precision engineered for use in small hose applications. Their slim 5/16″ band and low profile housing make them easy to install in confined areas. Part stainless steel.

Material Specifications

Screw: 1/4″ Hex Head; Plated Carbon Steel

Housing: 300 Stainless

Band: 5/16″; 300 Stainless

Installation Torque: 10 to 15 in-lbs (1.1 to 1.7 Nm)

Find Your Part Number

SizeMin (in)Max (in)Min (mm)Max (mm)IDEAL-TRIDON 62PTRIDON 325
045/165/88166204(1)325-004
055/163/481962P05325-005
065/167/88226206(2)325-006
087/161112562P08325-008
101/21-1/16132762P10325-010
129/161-1/4143262P12325-012
1611/161-1/2183862P16325-016
203/41-3/4194462P20325-020
2412265162P24325-024
281-1/42-1/4325762P28325-028
301-3/82-3/8356062P30325-030
321-1/22-1/2386362P32325-032
361-3/42-3/4457062P36325-036
442-1/43-1/4578262P44325-044
482-1/23-1/2648962P48325-048

(1) Old part no. 6202; (2) Old part no. 6203
