Worm Gear

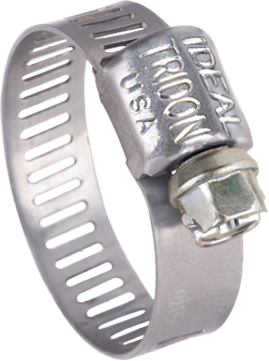

Micro-Gear® 62M

62M

Micro-Gear 62M clamps are tiny, tough and precision engineered for use in small hose applications. Their slim 5/16″ band and low profile housing make them easy to install in confined areas. Micro-Gear 62M is an all 300 grade stainless steel marine grade clamp.

Material Specifications

Screw: 1/4″ Hex Head; 300 Stainless

Housing: 300 Stainless

Band: 5/16″, 300 Stainless

Installation Torque: 10 to 15 in-lbs (1.1 to 1.7 Nm)

Find Your Part Number

SizeMin (in)Max (in)Min (mm)Max (mm)IDEAL-TRIDON 62MTRIDON 345
045/165/881662604(1)345-004
055/163/481962M05345-005
065/167/882262606(2)345-006
087/161112562M08345-008
101/21-1/16132762M10345-010
129/161-1/4143262M12345-012
1611/161-1/2183862M16345-016
203/41-3/4194462M20345-020
2412265162M24345-024
281-1/42-1/4325762M28345-028
301-3/82-3/8356062M30345-030
321-1/22-1/2386362M32345-032
361-3/42-3/4457062M36345-036
442-1/43-1/4578262M44345-044
482-1/23-1/2648962M48345-048

(1) Old part no. 62602; (2) Old part no. 62603
