Worm Gear

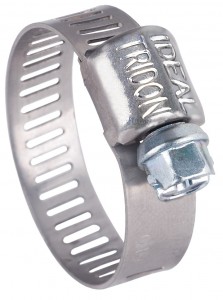

MICRO-GEAR® 52M

Micro-Gear 52M clamps are tiny, tough and precision engineered for use in small hose applications. Their slim 5/16″ band and low profile housing make them easy to install in confined areas. Part stainless steel.

Material Specifications

Screw: 1/4″ Hex Head; Plated Carbon Steel

Housing: Plated Carbon Steel

Band: 5/16″; 300 Stainless

Installation Torque: 10 to 15 in-lbs (1.1 to 1.7 Nm)

Find Your Part Number

SizeMin (in)Max (in)Min (mm)Max (mm)IDEAL-TRIDON 52M
045/165/88165202
065/167/88225203
