Worm Gear

Lined 67M

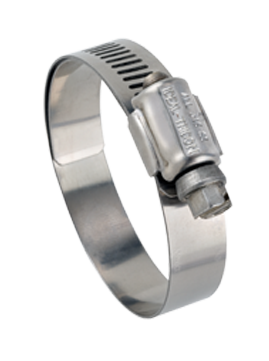

67M

Lined clamps are designed for use with silicone rubber and other soft hose applications. The liner protects the hose surface and prevents it from extruding or shearing through the band notches as the clamp is tightened.

Material Specifications

Screw: 5/16″ Hex Head; 316 Stainless

Housing: 316 Stainless

Band: 1/2″; 316 Stainless

Installation Torque: 35 in-lbs (4 Nm)

Find Your Part Number

SizeMin (in)Max (in)Min (mm)Max (mm)IDEAL-TRIDON 67M
85/8116256708M
1011/161-1/1617276710M
1211/161-1/417326712M
163/41-1/219386716M
2011-3/425446720M
241-1/16227516724M
281-5/162-1/433576728M
321-9/162-1/240636732M
361-13/162-3/446706736M
402-1/16352766740M
442-5/163-1/459826744M
482-9/163-1/265896748M
522-13/163-3/472956752M
563-1/164781016756M
603-5/164-1/4841086760M
643-9/164-1/2911146764M
724-1/1651031276772M
885-1/1661291526788M
965-9/166-1/21411656796M
