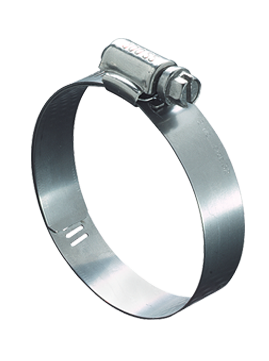

Worm Gear

Lined 65E

65E

Lined clamps are designed for use with silicone rubber and other soft hose applications. The liner protects the hose surface and prevents it from extruding or shearing through the band notches as the clamp is tightened.

Material Specifications

Screw: 5/16″ Hex Head; 300 Stainless

Housing: 300 Stainless

Band: 9/16″; 300 Stainless

Installation Torque: 35 in-lbs (4 Nm)

Find Your Part Number

SizeMin (in)Max (in)Min (mm)Max (mm)IDEAL-TRIDON 65E
61/27/813226506E
85/8116256508E
1011/161-1/1617276510E
1211/161-1/417326512E
163/41-1/219386516E
2011-3/425446520E
241-1/16227516524E
281-5/162-1/433576528E
321-9/162-1/240636532E
361-13/162-3/446706536E
402-1/16352766540E
442-5/163-1/459826544E
482-9/163-1/265896548E
522-13/163-3/472956552E
563-1/164781016556E
603-5/164-1/4841086560E
643-9/164-1/2911146564E
724-1/1651031276572E
