Worm Gear

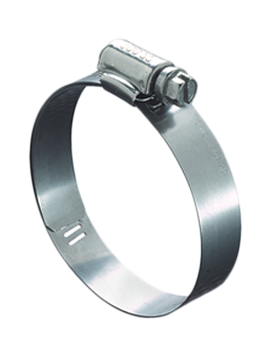

Lined 615

615

Lined clamps are designed for use with silicone rubber and other soft hose applications. The liner protects the hose surface and prevents it from extruding or shearing through the band notches as the clamp is tightened.

Material Specifications

Screw: 5/16″ Hex Head; 300 Stainless

Housing: 200 Stainless

Band: 1/2″; 200 Stainless

Installation Torque: 35 in-lbs (4 Nm)

Find Your Part Number

SizeMin (in)Max (in)Min (mm)Max (mm)IDEAL-TRIDON 615
61/27/81322615-006
85/811625615-008
1011/161-1/161727615-010
1211/161-1/41732615-012
163/41-1/21938615-016
2011-3/42544615-020
241-1/1622751615-024
281-5/162-1/43457615-028
321-9/162-1/24064615-032
361-13/162-3/44670615-036
402-1/1635276615-040
442-5/163-1/45982615-044
482-9/163-1/26589615-048
522-13/163-3/47295615-052
563-1/16478100615-056
603-9/164-1/484108615-060
643-9/164-1/291114615-064
724-1/165103127615-072
804-9/165-1/2116140615-080
