No-Hub Coupling

Standard

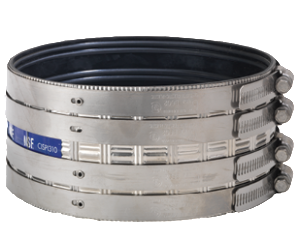

Standard No-Hub Coupling

The IDEAL-TRIDON Standard No-Hub Coupling is a fully certified line (including NSF) of standard duty couplings manufactured of domestically produced components and a quality low-cost alternative for applications where structural reinforcement is not a concern.  It is the original no-hub coupling that has been in use since 1965 and  fully in compliance to ASTM C564, CISPI 310 and ASTM C1277. It also carries IAPMO, Canadian Standard Association, and NSF Certifications.

Material Specifications

Shield Material:  301 SS
Band Material: 301 SS
Housing Material: 301 SS
Screw Material: 305 SS
Eyelet Material: 305 SS
Gasket Material: ASTM C564 Compliant
Installation Torque: 60 in-lbs
Ultimate Torque: 75 in-lbs

Find Your Part Number

SizePart No.Installation Torque Inch-PoundsNo. of Clamps Per Coupling
1-1/2″6217M8G602
2″6218M8G602
3″6219M8G602
4″6220M8G602
5″6221M8G604
6″6222M8G604
8″6223M8G604
10″6230M8G604
2″ x 1-1/2″6233M8G602
3″ x 2″62R198G602
4″ x 3″62R208G602
