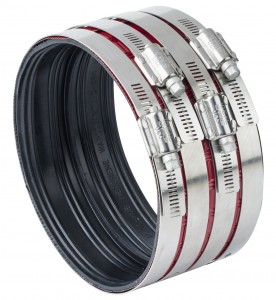

NoHub-PowrGear Red Pow’r-Gear® Red No-Hub Coupling

This innovative coupling offers all the performance of a heavy duty coupling with the shield width of a standard duty coupling. No more grinding locator lugs on cast iron fittings as this coupling will not encroach the lug. Half the clamps to tighten means half the labor to install. In full compliance with ASTM 564, ASTM C1277, FM1680 (Class 1 and 2) and carries IAPMO, Canadian Std Association. Meets all performance requirements of ASTM C1540.



Pow’r-Gear® Red No-Hub Coupling
Purchase Pow’r-Gear® Red No-Hub Coupling
  • Pow’r-Gear® Red No-Hub Coupling

  • This innovative coupling offers all the performance of a heavy duty coupling with the shield width of a standard duty coupling. No more grinding locator lugs on cast iron fittings as this coupling will not encroach the lug. Half the clamps to tighten means half the labor to install. In full compliance with ASTM 564, ASTM C1277, FM1680 (Class 1 and 2) and carries IAPMO, Canadian Std Association. Meets all performance requirements of ASTM C1540.



    Material Specifications
    Shield Material: 301 SS
    Band Material: 301 SS
    Housing Material: 304 SS
    Screw Material: 305 SS
    Eyelet Material: 300 SS
    Gasket Material: ASTM C564 Compliant
    Installation Torque: 80 in-lbs
    Ultimate Torque: 150 in-lbs

See more products like this one:

Pow’r-Gear® Red No-Hub Coupling
Size Part No. Installation Torque Inch-Pounds No. Clamps Per Coupling Coupling Width
1-1/2″ 6217P8G 80 2 2-1/8″
2″ 6218P8G 80 2 2-1/8″
3″ 6219P8G 80 2 2-1/8″
4″ 6220P8G 80 2 2-1/8″
5″ 6221P8G 80 4 3″
6″ 6222P8G 80 4 3″
8″ 6223P8G 80 4 4″
10″ 6230P8G 80 4 4″
