No-Hub Coupling

Heavy-Duty MD

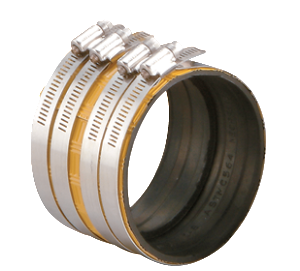

Heavy-Duty MD No-Hub Coupling

IDEAL-TRIDON  Heavy-Duty MD coupling is similar to the HD version, but with a 5/16” inch drive, its a value-engineered alternative. No-risk, lower cost choice when performance criteria can’t be altered. In full compliance to ASTM C564, ASTM C1540, FM 1680 (Class 1 and 2), and carries IAPMO, and Canadian Standards Association certification.

Material Specifications

Shield Material:  304SS
Band Material: 304 SS
Housing Material: 304 SS
Screw Material: 305 SS
Eyelet Material: 305 SS
Gasket Material: ASTM C564 Compliant
Installation Torque: 80 in-lbs
Ultimate Torque: 100 in-lbs

Find Your Part Number

SizePart No.Installation Torque Inch-PoundsNo. Clamps Per Coupling
1-1/2″6217Y8G804
2″6218Y8G804
3″6219Y8G804
4″6220Y8G804
5″6221Y8G806
6″6222Y8G806
8″6223Y8G806
10″6230Y8G806
