No-Hub Coupling

Classic

No-Hub Classic

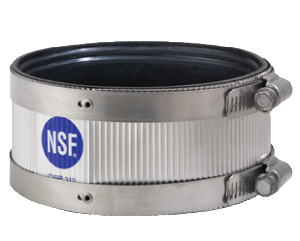

Classic No-Hub Coupling

IDEAL-TRIDON Classic No-Hub Couplings are a quality line of standard-duty, import couplings fully manufactured and backed by Ideal Clamp Products. Classic is manufactured utilizing the same tools and equipment for our full line and subjected to the same quality systems and measurements.  In full compliance to ASTM C564, CISPI 310 and ASTM C1277, and also carries IAPMO, Canadian Standard Association, and NSF Certifications.

Material Specifications

Shield Material:  301 SS
Band Material: 301 SS
Housing Material: 301 SS
Screw Material: 305 SS
Eyelet Material: 305 SS
Gasket Material: ASTM C564 Compliant
Installation Torque: 60 in-lbs
Ultimate Torque: 75 in-lbs

Find Your Part Number

SizePart No.Installation Torque Inch-PoundsNo. of Clamps Per Coupling
1-1/2″621708G60
2
2″621808G602
3″621908G602
4″622008G602
5″622108G604
6″622208G604
8″622308G604
10″623008G604
2″ x 1-1/2″62R218G602
3″ x 2″62R328G602
4″ x 3″62R438G602
