Spring Clamps

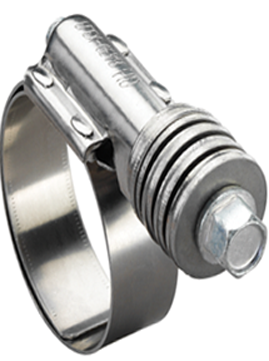

Flex-Gear® HD 41

Flex-Gear 41 heavy duty clamps use a Belleville spring design to eliminate “cold flow” leakage in heavy duty applications and adjust with the hose and fitting to maintain constant tension on the connection, eliminating leak paths. Flex-Gear clamps are an excellent choice for fluctuating and extreme temperature applications and thermal compensation.

Material Specifications

Screw: 3/8″ Hex Head, Plated Carbon Steel

Housing: 300 Stainless

Spring: 300 Stainless

Band: 5/8″, 300 Stainless

Installation Torque: 75 in-lbs (8.5 Nm)

Find Your Part Number

SizeMin (in)Max (in)Min (mm)Max (mm)IDEAL-TRIDON 41
17511-3/4254541175
2121-1/42-1/8325441200
2621-3/42-5/8456741250
3122-1/43-1/8577941300
3622-3/43-5/8709241350
4123-1/44-1/88310541400
4623-3/44-5/89511741450
5124-1/45-1/810813041500
5624-3/45-5/812114341550
6125-1/46-1/813315541600
6625-3/46-5/814616841650
7126-1/47-1/815918141700
7626-3/47-5/817219341750
8127-1/48-1/818420641800
8627-3/48-5/819721941850
9128-1/49-1/821023241900
