Spring Clamps

Flex-Gear® 47

47

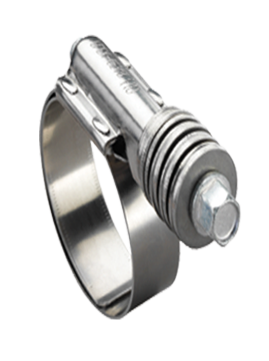

Flex-Gear 47 all stainless steel clamps use a Belleville spring design to eliminate “cold flow” leakage in light duty applications and adjust with the hose and fitting to maintain constant tension on the connection, eliminating leak paths. Flex-Gear clamps are an excellent choice for fluctuating and extreme temperature applications and thermal compensation.

Material Specifications

Screw: 5/16″ Hex Head, 410 Stainless

Housing: 300 Stainless

Spring: 300 Stainless

Band: 9/16″, 300 Stainless

Installation Torque: 50 in-lbs (5.6 Nm)

Find Your Part Number

SizeMin (in)Max (in)Min (mm)Max (mm)IDEAL-TRIDON 47
109/161-1/16142747010
125/81-1/4163247012
1613/161-1/2213847016
2013/161-3/4204447020
241-1/162275147024
281-5/162-1/4335747028
321-9/162-1/2406347032
361-13/162-3/4467047036
402-1/163527647040
442-5/163-1/4598247044
482-9/163-1/2658947048
