Spring Clamps

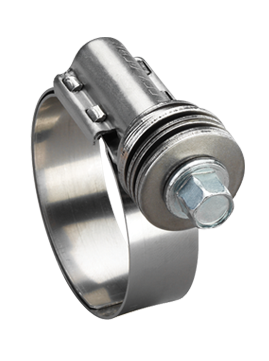

Flex-Gear® 43

43

Flex-Gear 43 clamps use a Belleville spring design to eliminate “cold flow” leakage in light duty applications and adjust with the hose and fitting to maintain constant tension on the connection, eliminating leak paths.  Flex-Gear clamps are an excellent choice for fluctuating and extreme temperature applications and thermal compensation.

Material Specifications

Screw: 5/16″ Hex Head, Plated Carbon Steel

Housing: 300 Stainless

Spring: 300 Stainless

Band: 9/16″, 300 Stainless

Installation Torque: 50 in-lbs (5.6 Nm)

Find Your Part Number

SizeMin (in)Max (in)Min (mm)Max (mm)IDEAL-TRIDON 43
109/161-1/16142743010
125/81-1/4163243012
1613/161-1/2213843016
2013/161-3/4204443020
241-1/162275143024
281-5/162-1/4335743028
321-9/162-1/2406343032
361-13/162-3/4467043036
402-1/163527643040
442-5/163-1/4598243044
482-9/163-1/2658943048
