Worm Gear

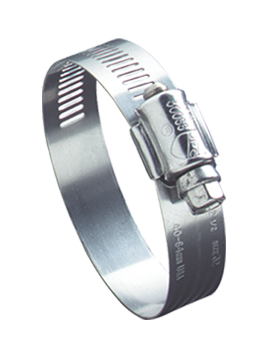

9/16″ Hy-Gear® 63-4

63-4

9/16″ Hy-Gear 63-4 is an all  300 grade stainless steel IAPMO listed marine grade clamp perfect for recreational boating and applications requiring greater resistance to corrosion. NOTE: For commercial shipping, extra strenuous or more extreme corrosion resistance application needs, the all 316 stainless steel 1/2″ Hy-Gear 67-6 is recommended.

Material Specifications

Screw: 5/16″ Hex Head; 300 Stainless

Housing: UPC Shield; 300 Stainless

Band: 9/16″; 300 Stainless

Installation Torque: 35 in-lbs (4Nm)

Find Your Part Number

SizeMin (in)Max (in)Min (mm)Max (mm)IDEAL-TRIDON 63-4
063/87/8102263004-0006
087/161112563004-0008
101/21-1/16132763004-0010
121/21-1/4133263004-0012
1611/161-1/2183863004-0016
203/41-3/4194463004-0020
2412255163004-0024
281-1/42-1/4325763004-0028
321-1/22-1/2386363004-0032
363/42-3/4197063004-0036
4013267663004-0040
441-1/43-1/4328363004-0044
481-1/23-1/2388963004-0048
521-3/43-3/4449563004-0052
56245110163004-0056
602-1/44-1/45710863004–0060
642-1/24-1/26411463004-0064
72357612763004-0072
803-1/25-1/28914063004-0080
884610215263004-0088
964-1/26-1/211416563004-0096
1045712717863004-0104
1165-3/47-3/414619763004-0116
1282-1/28-1/26421663004-0128
1402-1/29-1/46423563004-0140
1522-1/2106425463004-0152
1642-1/210-3/46427363004-0164
1762-1/211-1/26429263004-0176
1882-1/212-1/46431163004-0188
2082-1/213-1/26434363004-0208
2242-1/214-1/26436863004-0224
2362-1/215-1/46438763004-0236
2482-1/2166440663004-0248
2602-1/216-3/46442563004-0260
2722-1/217-1/26444563004-0272
3122-1/2206450863004-0312
3802-1/224-1/46461663004-0380
7602-1/24864121963004-0760

Additional sizes available.
