Worm Gear

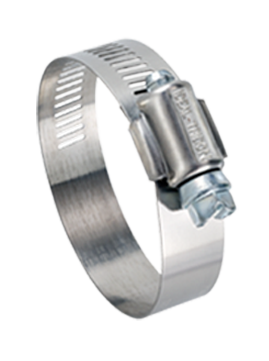

9/16″ Hy-Gear® 50-0

9/16″ Hy-Gear 50-0 is part stainless steel and our most popular full-size clamp. It is the industry standard for general purpose applications.

50-0 Series clamps are MADE IN USA.

Material Specifications

Screw: 5/16″ Hex Head; Plated Carbon Steel

Housing: 200 Stainless

Band: 9/16″; 200 Stainless

Installation Torque: 35 in-lbs (4 Nm)

Find Your Part Number

SizeMin (in)Max (in)Min (mm)Max (mm)IDEAL-TRIDON 50-0TRIDON 150
63/87/8102250060
87/161112550080
101/21-1/16132750100150-010
121/21-1/4133250120150-012
1611/161-1/2183850160150-016
203/41-3/4194450200150-020
2412255150240150-024
281-1/42-1/4325750280150-028
321-1/22-1/2386350320150-032
363/42-3/4197050360150-036
4013267650400150-040
441-1/43-1/4328350440150-044
481-1/23-1/2388950480150-048
521-3/43-3/4449550520150-052
56245110150560150-056
602-1/44-1/45710850600150-060
642-1/24-1/26411450640150-064
72357612750720150-072
803-1/25-1/28914050800150-080
884610215250880150-088
964-1/26-1/211416550960150-096
1045712717850104150-104

Additional sizes available.
